SHINING 3D FreeScan Combo 3D Scanner
Dhs. 42,744.33
Skip to product information
SHINING 3D FreeScan Combo 3D Scanner
Dhs. 42,744.33
Available on Click & Collect · Pay by card or cash at pickup, or choose bank transfer at checkout How does it work?
Laser lines
26 + 7 + 1
Accuracy (best)
Up to 0.02 mm
Technical specifications
| Light source | Blue laser + infrared |
|---|---|
| Crossed laser lines | 26 |
| Parallel laser lines | 7 |
| Deep-hole laser lines | 1 |
| Laser accuracy | Up to 0.02 mm under manufacturer test conditions |
| Model | Original FreeScan Combo |
Shining 3D

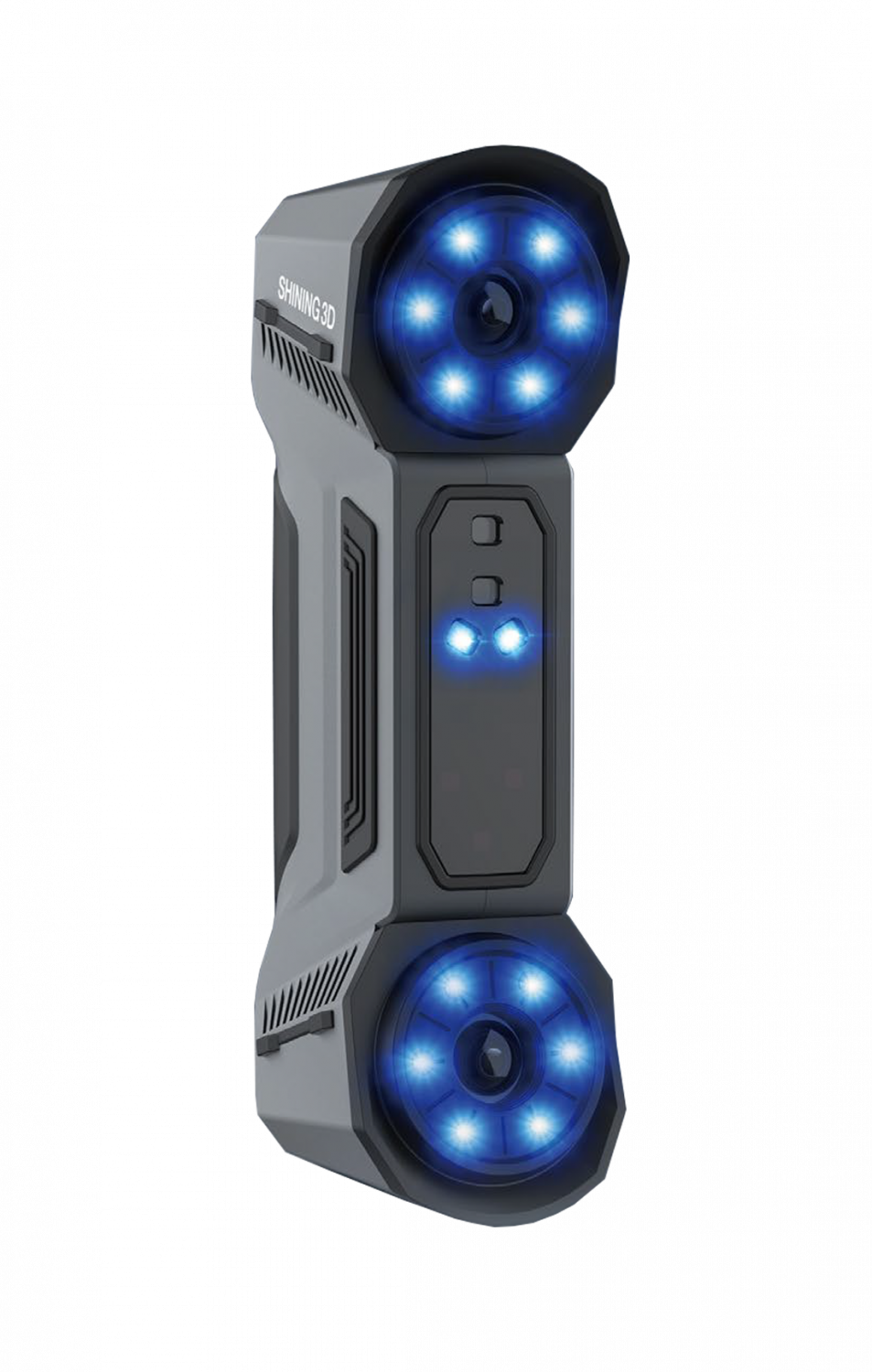

SHINING 3D FreeScan Combo
A compact handheld metrology scanner combining blue laser and infrared capture for engineering and quality-control work.
Two light technologies
Choose blue laser capture for dimensional work or infrared capture for feature-rich objects.
Four scanning modes

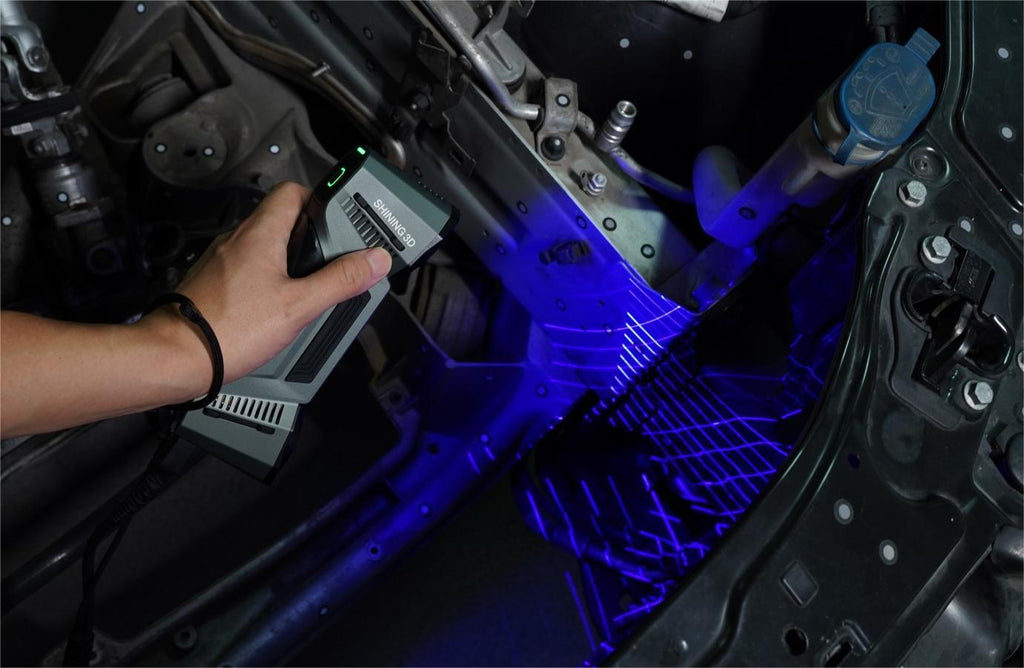

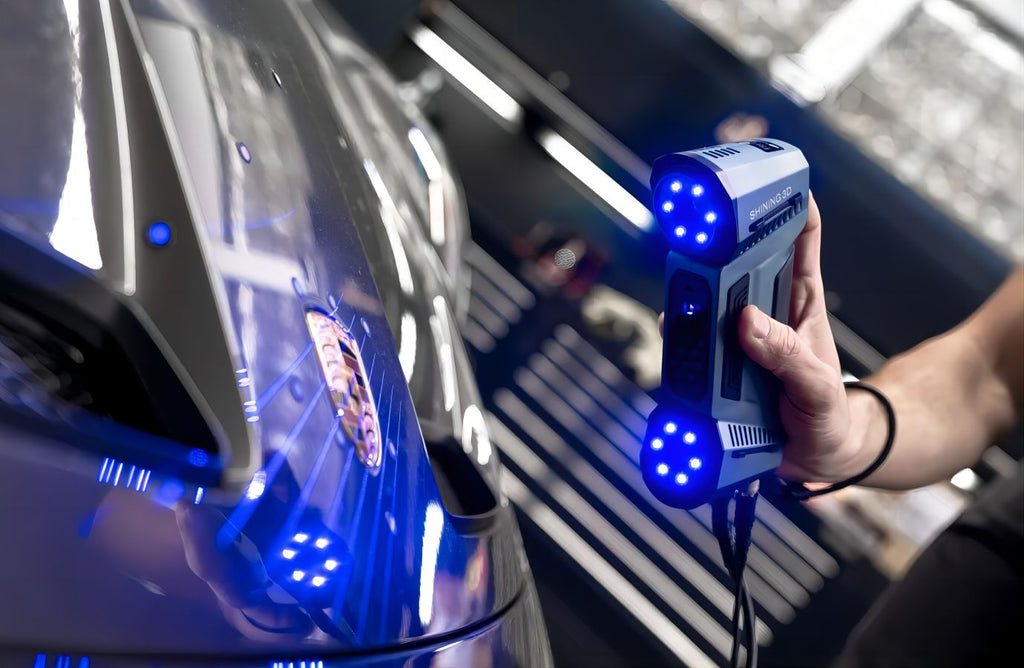

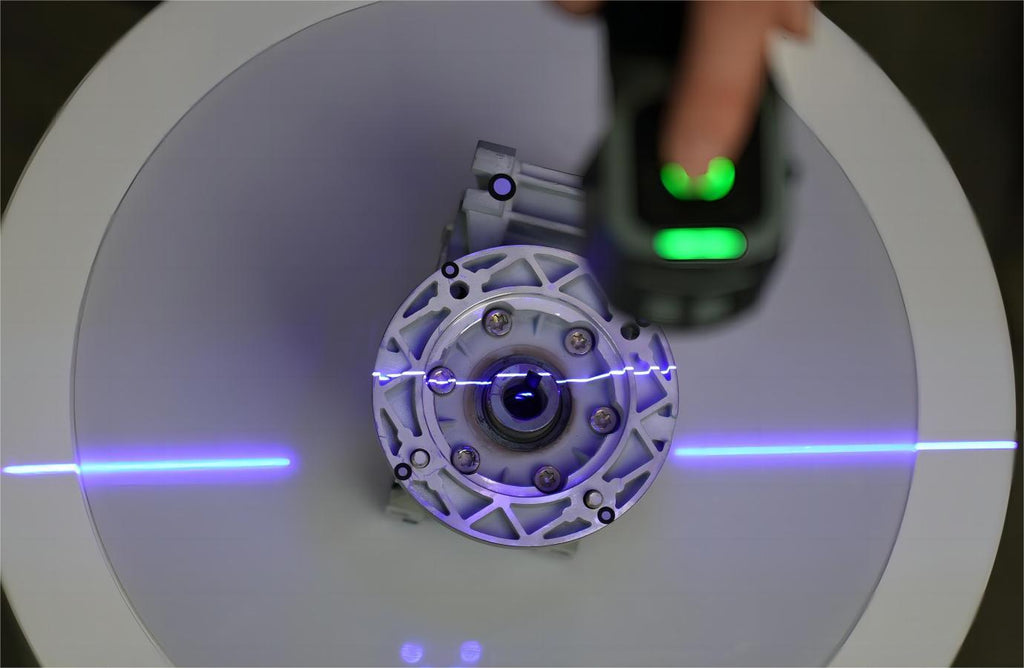

The original Combo uses 26 crossed laser lines, 7 parallel lines, a single deep-hole line and infrared mode. FreeScan Combo uses 26 crossed blue laser lines for overall acquisition, seven parallel lines for fine detail and one line for deep holes or pockets. Infrared mode provides a separate marker-free option for suitable objects.
Metrology workflow
Manufacturer laser accuracy is up to 0.02 mm under specified conditions. Select inspection software to match your reporting needs. Export scan data into compatible reverse-engineering or inspection software for CAD reconstruction, comparison and reporting. Combo captures geometry without colour texture; black or reflective surfaces still require an appropriate mode and, where needed, preparation.
Prepare markers efficiently
The optional Metrology Kit uses magnetic marker balls to organise reference placement around suitable workpieces. Laser scanning relies on an appropriate marker arrangement, while the infrared mode can track suitable geometry without markers.
From calibration to a cleaned scan
FreeScan software guides calibration, acquisition and editing. Adjustable resolution matches the detail level to the part, and AI-assisted cleanup removes unwanted data. The included scanning software receives ongoing updates without a scanning subscription.
