Implant positions
Intraoral photogrammetry
Shining 3D Aoralscan Elite Wireless Intraoral Dental 3D Scanner
Dhs. 82,171.00
Skip to product information

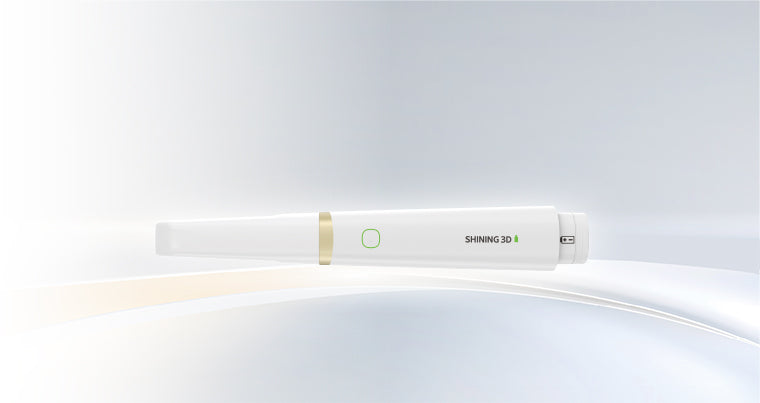

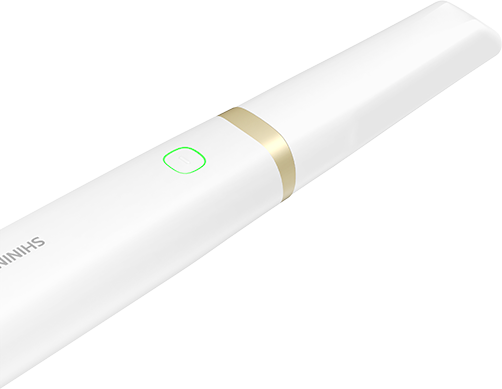

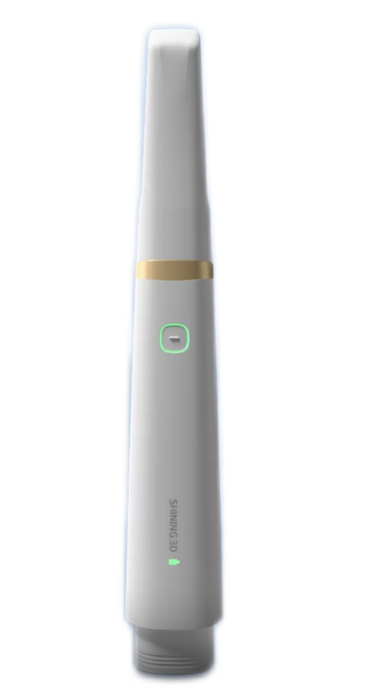

Shining 3D Aoralscan Elite Wireless Intraoral Dental 3D Scanner
Dhs. 82,171.00
Available on Click & Collect · Pay by card or cash at pickup, or choose bank transfer at checkout How does it work?
Connectivity
Wireless
All-on-X
Coded scanbody workflow
Technical specifications
| Scan Field of Single Frame | IPG scanner tip: 19mm × 14mm Standard scanner tip: 16 mm × 12 mm Mini scanner tip: 12 mm × 9 mm |
|---|---|
| Scan Depth | 22 mm from exit surface of tip |
| Scan Principle | Non-contact scanner with structured light and Intraoral photogrammetry |
| Dimension (L × W × H) | 247 mm x 38 mm x 37 mm |
| Weight | 194 g (without battery) |
| Output | STL, OBJ, PLY |
| Connection Port | Type-C |
Aoralscan Elite Wireless
Intraoral scanning and intraoral photogrammetry in one device. With wireless freedom.
IMPLANT PHOTOGRAMMETRY
Photogrammetry for All-on-X
Intraoral photogrammetry captures implant positions using the compatible coded scanbody workflow.
RESTORATIVE WORKFLOWS
Everyday intraoral scanning
Switch to intraoral scanning for conventional restorative cases and soft-tissue capture.
WIRELESS HANDLING
Designed for clinical handling
The handpiece design supports positioning and access throughout the scan.
Use one scanner for conventional and implant cases
The Elite system combines normal intraoral scanning with intraoral photogrammetry for full-arch implant workflows. Select the appropriate mode and accessories for restorations, orthodontic records or All-on-X data capture.
Connect implant positions with soft-tissue data
The coded scanbody and Cap Scanbody workflow links implant reference positions to the surrounding soft-tissue scan. Compatible libraries convert the references into CAD data for downstream prosthetic design.
A dedicated tip for edentulous capture
The larger IPG tip is designed for the photogrammetry and edentulous workflow. Standard intraoral scanning remains available for everyday cases, with the scanning strategy chosen by the clinician.
Check the implant connection and export workflow
The high-accuracy coded scanbodies connect to compatible multi-unit abutments (MUA) and are specific to Elite and Elite Wireless. Confirm the implant library and physical interface before use. The open system exports data for compatible CAD software.
Organise scanning across the clinic
Wireless charging and cradle switching support movement between equipped workstations. Plan charging, batteries and computer connections around the clinic’s workflow so the handpiece is ready for the next case.
