Revopoint MIRACO Pro 32GB Standalone 3D Scanner
7,027.65 AED
Skip to product information
Revopoint MIRACO Pro 32GB Standalone 3D Scanner
7,027.65 AED
Available on Click & Collect · Pay by card or cash at pickup, or choose bank transfer at checkout How does it work?
Capture modes
Near + Far
Colour camera
48 MP
Technical specifications
| Model | MIRACO Pro (32 GB RAM) |
|---|---|
| Scanning technology | Quad-camera infrared structured light |
| Single-frame precision, up to | 0.02 mm |
| Single-frame accuracy, up to | 0.05 mm |
| Fused point distance | 0.05 mm |
| Capture area at nearest distance | 28 × 53 mm at 100 mm |
| Capture area at farthest distance | 975 × 775 mm at 1,000 mm |
| Capture modes | Single-shot; continuous |
| Depth-camera modes | Near; far |
| Scanning speed, up to | 15 fps |
| Minimum scan volume | 10 × 10 × 10 mm |
| Maximum scan volume | 4,000 × 4,000 × 4,000 mm |
| Working distance | 100–1,000 mm |
| Screen | 6-inch 2K AMOLED touchscreen; 180° tilt |
| Auxiliary lighting | Infrared fill lights; flash LEDs |
| 3D light source | Class 1 infrared light |
| Internal storage | 256 GB eMMC |
| Position sensors | 9-axis IMU |
| Memory (RAM) | 32 GB DDR4 |
| RGB camera resolution, up to | 48 MP |
| Scanner weight | 750 g |
| Dimensions (L × W × H) | 200 × 50 × 110 mm |
| Battery capacity | 5,000 mAh internal lithium battery |
| Continuous scanning time, up to | 2 hours |
| Fast charging | 80% in 35 minutes with 65 W charging |
| CPU | 8 cores; 2.4 GHz |
| Tracking methods | Feature; Marker; Global Marker |
| Protection rating | IP45 |
| Connector | USB Type-C |
| Wireless connection | Wi-Fi 6 |
| Compatible computer operating systems | Windows 10/11 (64-bit); macOS 11.0 or later |
| Onboard operating system | Android |
| Special surfaces | Use scanning spray for transparent, dark or highly reflective objects |
| Scanning environment | Indoors and outdoors; avoid direct sunlight |
| Output formats | PLY, OBJ, STL, ASC, 3MF, GLTF, FBX |
| On-device processing | Scanning, fusion, meshing and editing |
| 3D printing compatible | Yes |
In the box
1 MIRACO Pro 3D scanner
4 far-mode calibration boards
1 large calibration sheet
1 USB Type-C to HDMI adapter
1 tripod
1 mini turntable and sample bust
1 turntable topper
1 turntable power cable
1 near-mode calibration board
2 Magic Mats
1 wrist strap
1 65 W dual USB Type-C power adapter
1 USB Type-C to C cable (1.8 m)
1 cleaning cloth
1 marker
1 certificate and warranty card
1 scanner storage bag
Revopoint
Revopoint MIRACO Pro
A standalone infrared scanner with onboard processing, a tilting display and 32 GB RAM for larger capture projects.
Choose single shots or continuous capture
Single-shot mode captures a view at a time in difficult-to-manoeuvre spaces. Continuous mode collects successive frames while you move around the object. Both require sufficient overlap to align the captured geometry.

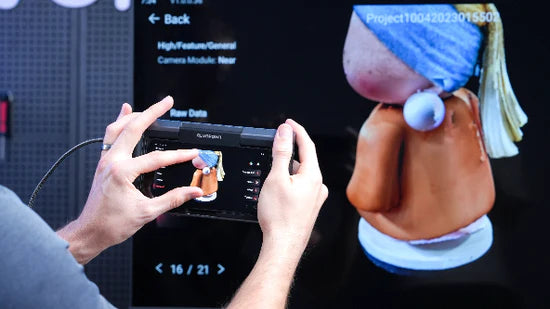

Work without a computer
Scan, fuse, mesh and edit directly on the device. Transfer files through Wi-Fi 6 or USB-C when required. Perform fusion, meshing and editing directly on MIRACO. The adjustable 6-inch screen supports different viewing angles, while Wi-Fi 6 and USB Type-C transfer projects to a compatible Windows or Mac workflow.
Near and far capture
Switch between near mode for finer objects and far mode for larger surfaces; use single-shot or continuous capture. Pause the scan to switch between near and far depth-camera pairs. Capture the overall form in Far Mode, then move closer in Near Mode for smaller areas without creating an entirely separate project.
48 MP colour camera
Capture colour textures for visualisation and digital archiving. The Pro configuration includes 32 GB RAM.

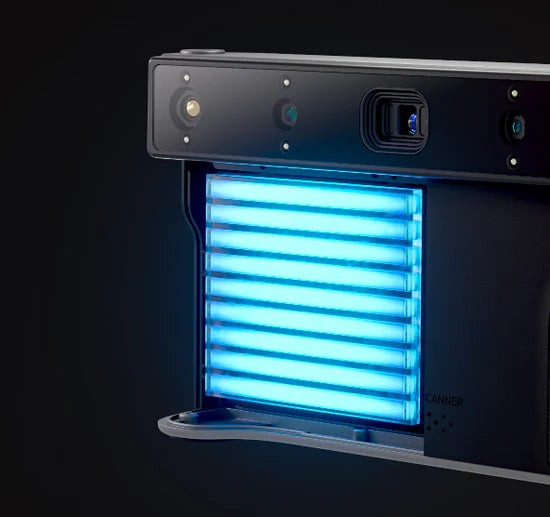

A self-contained field setup
The built-in battery supports up to two hours of scanning under the manufacturer’s conditions. Fast charging and internal storage make the scanner practical away from a desk, while internet access is needed for updates rather than normal offline capture.
Select the version and prepare difficult surfaces
MIRACO has 16 GB RAM; MIRACO Pro increases memory to 32 GB and changes the supplied calibration accessories. Transparent, dark or highly reflective objects can require scanning spray, and outdoor use should avoid direct sunlight.
