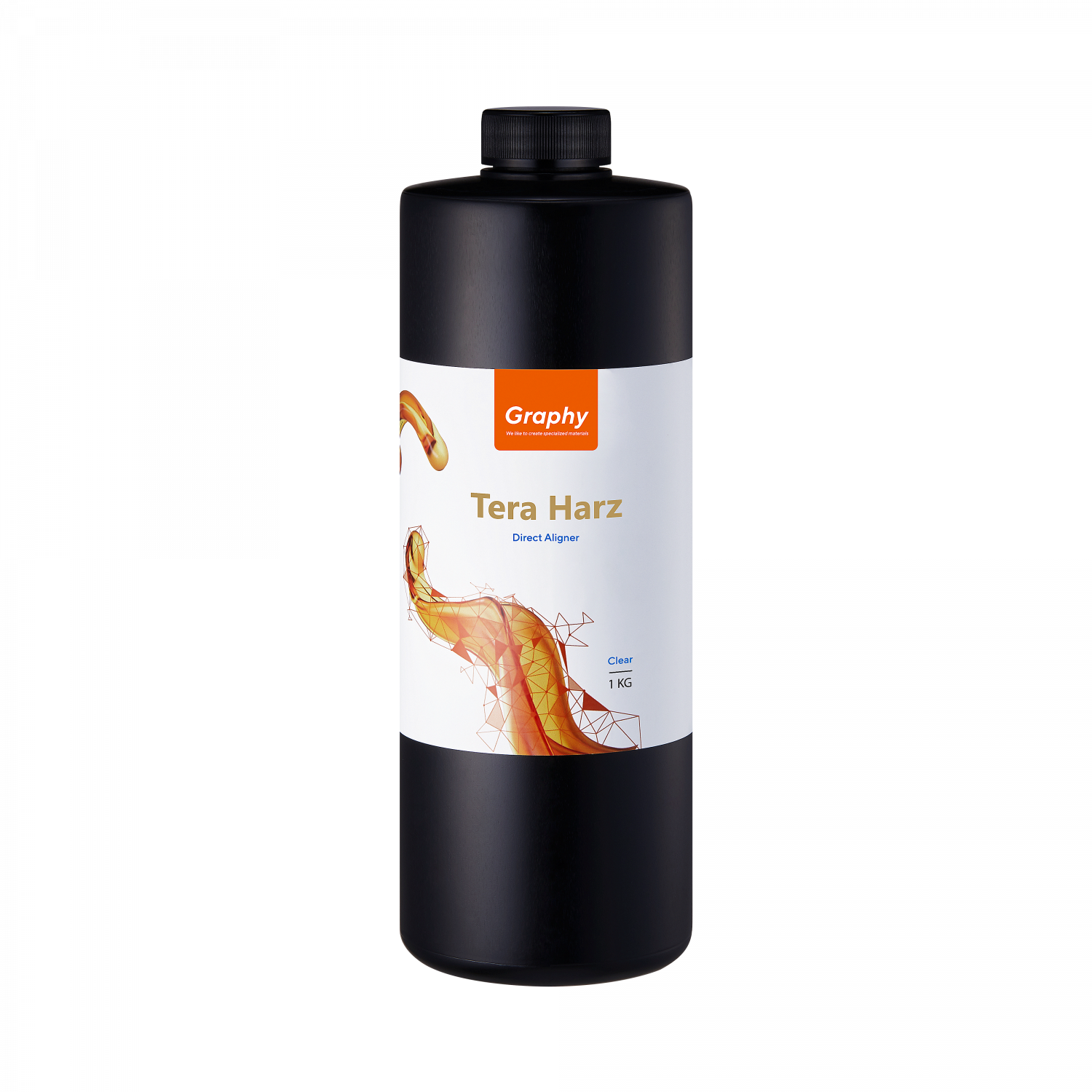

Graphy Tera Harz TC-85DAC Aligner Resin 1kg

Graphy Tera Harz TC-85DAC is a clear, biocompatible photopolymer developed for the direct 3D printing of orthodontic aligners. Its shape-memory behaviour helps the appliance recover its intended geometry while delivering controlled, continuous orthodontic force.

Direct aligner production

TC-85DAC removes the model-printing and thermoforming stages from the conventional aligner workflow. Variable thicknesses can be designed directly into a single appliance for a more efficient digital production process.

Key characteristics

• Application: directly printed clear orthodontic aligners
• Colour: clear
• Medical classification: CE Class IIa
• Compatible printing technologies: DLP, LCD and SLA systems
• Shape-memory material
• Shore hardness: ≥ 85 D
• Density at 25°C: 1.061 ± 0.02 g/cm³
• Viscosity at 25°C: 800 ± 200 cps
• Flexural strength: ≥ 50 MPa
• Flexural modulus: ≥ 1500 MPa

Professional dental material. Printing and post-processing must follow Graphy’s validated workflow and instructions for use.
