EINSTAR VEGA 3D Scanner
Dhs. 9,145.71
Skip to product information

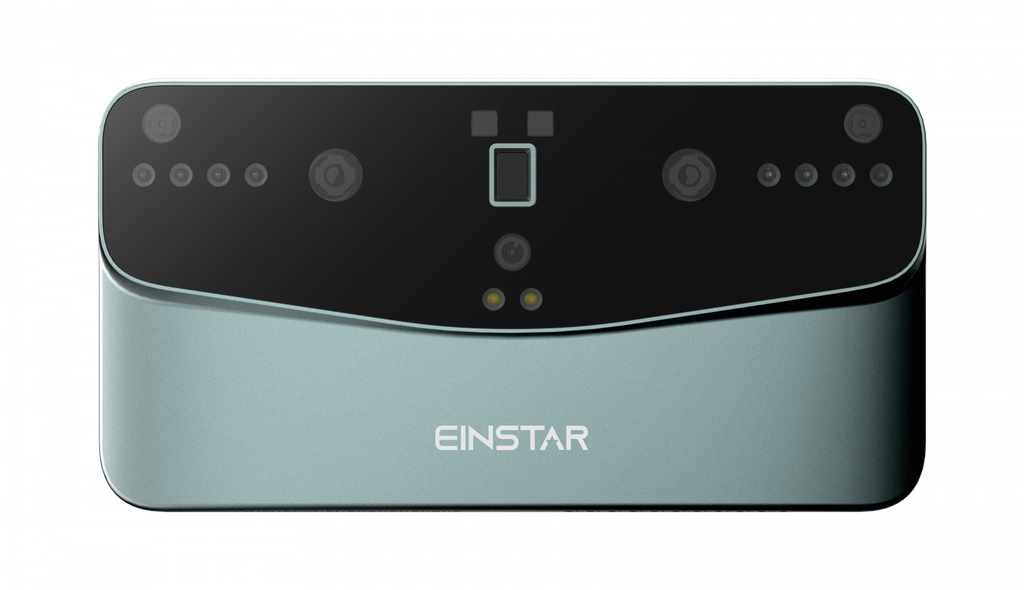

EINSTAR VEGA 3D Scanner
Dhs. 9,145.71
Available for demo at our showroom
Available on Click & Collect · Pay by card or cash at pickup, or choose bank transfer at checkout How does it work?
Capture modes
HD + Fast
Colour camera
48 MP
Technical specifications
| Light source | Infrared MEMS (HD) / infrared VCSEL (Fast) |
|---|---|
| Point distance — HD | 0.05–3 mm |
| Point distance — Fast | 0.5–10 mm |
| Working distance — HD | 100–350 mm |
| Working distance — Fast | 350–1500 mm |
| Frame rate | HD: up to 15 fps / Fast: up to 20 fps |
| Colour camera | 48 MP |
| RAM | 32 GB LPDDR4 |
| Storage | 32 GB eMMC + 512 GB SSD |
| Display | 6.4-inch 2K OLED touchscreen |
| Connection | Wi-Fi 6 / USB Type-C |
Shining 3D

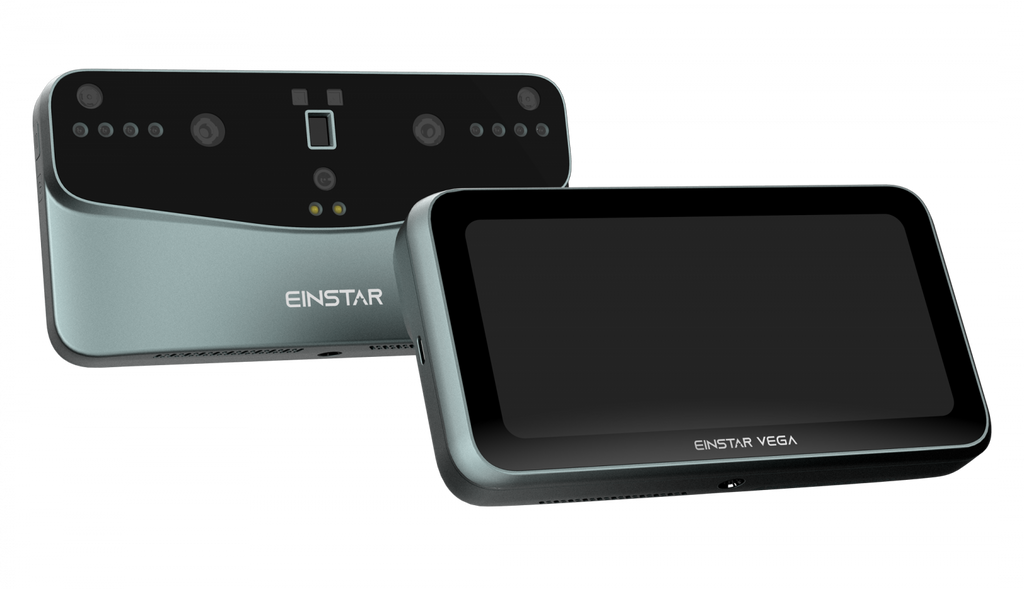

EINSTAR VEGA
A standalone scanner for portable object capture, combining onboard computing, a display and colour acquisition.

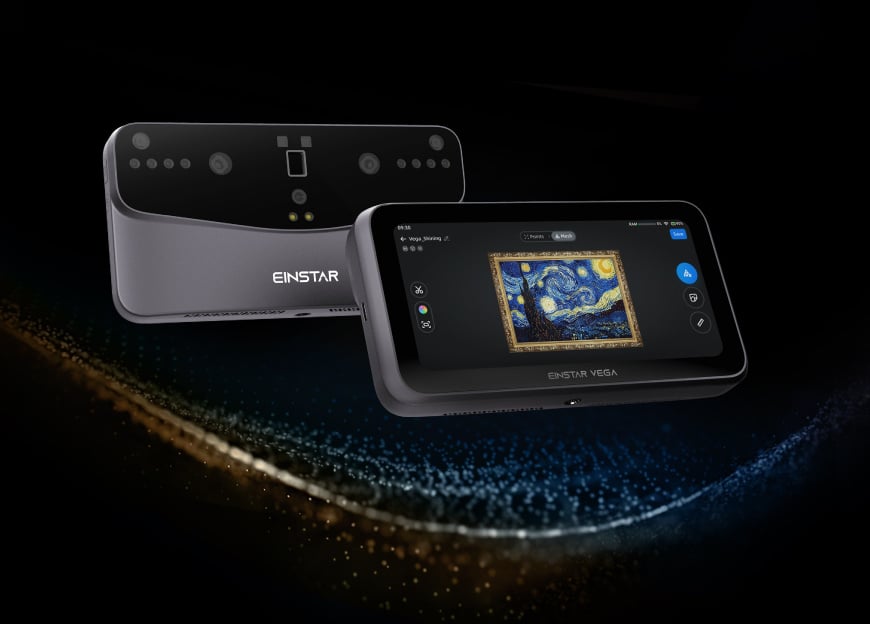

Scan without a laptop
Capture and process on the device, then transfer your projects for further editing or sharing.

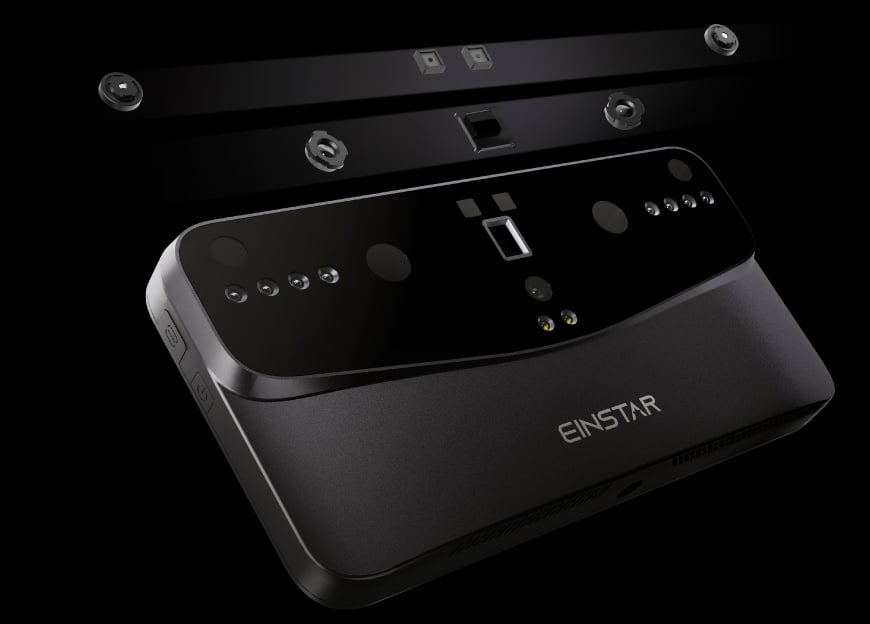

HD and Fast modes
MEMS technology handles shorter-range detail, while VCSEL supports wider capture of medium and larger objects. Fast Mode covers working distances of 350–1500 mm. With VEGA software v1.3 or later, HD Mode supports 100–250 mm at high resolution, 100–300 mm at standard resolution and 100–350 mm at low resolution. Choose the mode and resolution for your object and the detail required.

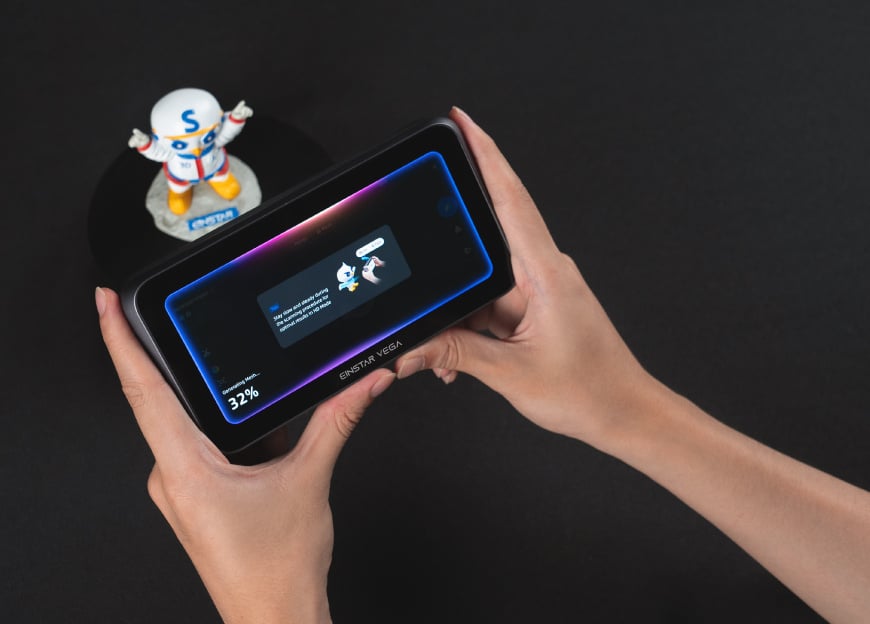

Hardware for field work
A 6.4-inch AMOLED screen, 32 GB RAM, 512 GB SSD and 48 MP colour camera support the standalone workflow.
Keep control of tracking and scan quality
Hybrid alignment combines references to stabilise tracking. Scan rewind corrects alignment mistakes, while base-plane detection, coordinate adjustment and model measurement help organise the result directly in the workflow.

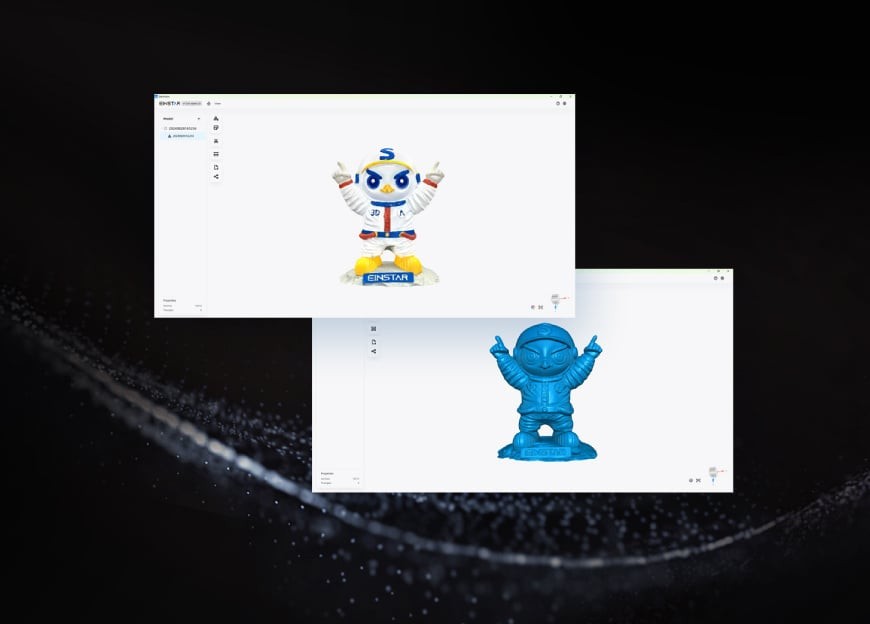

Continue on Windows or macOS
Use standalone capture in the field, then continue processing in Starvision on a compatible Windows or Mac computer. SHINING 3D Cloud supports model sharing when the project requires collaboration.

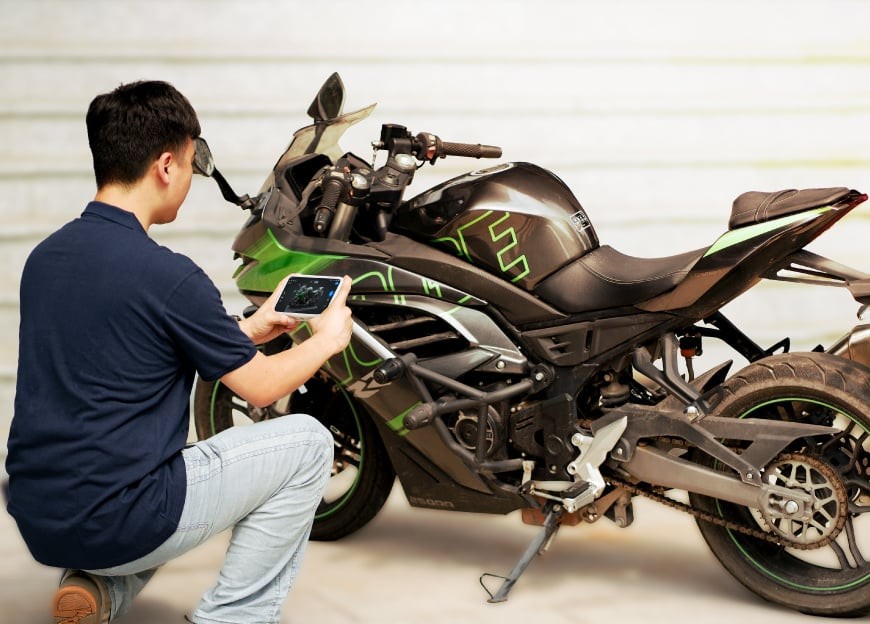

Capture visual models in different settings
The wireless all-in-one format suits outdoor objects, cultural documentation, education and automotive customisation. Plan the lighting, surface preparation and scanning path around the object to maintain stable coverage.
