Blue laser
7 lines
Creality CR-Scan Raptor 3D Scanner
Dhs. 4,753.00
Skip to product information
Creality CR-Scan Raptor 3D Scanner
Dhs. 4,753.00
Available on Click & Collect · Pay by card or cash at pickup, or choose bank transfer at checkout How does it work?
Capture modes
Laser + infrared
Export formats
STL / OBJ / PLY
Technical specifications
| Light source | 7 parallel blue laser lines + infrared |
|---|---|
| Laser accuracy | Up to 0.02 mm at 100 mm under manufacturer test conditions |
| Laser tracking | Markers |
| Infrared tracking | Geometry / texture / markers |
| Software | CrealityScan |
| File formats | STL / OBJ / PLY |
Creality
Creality CR-Scan Raptor
A handheld hybrid scanner combining seven blue laser lines with near-infrared structured light for different object sizes.

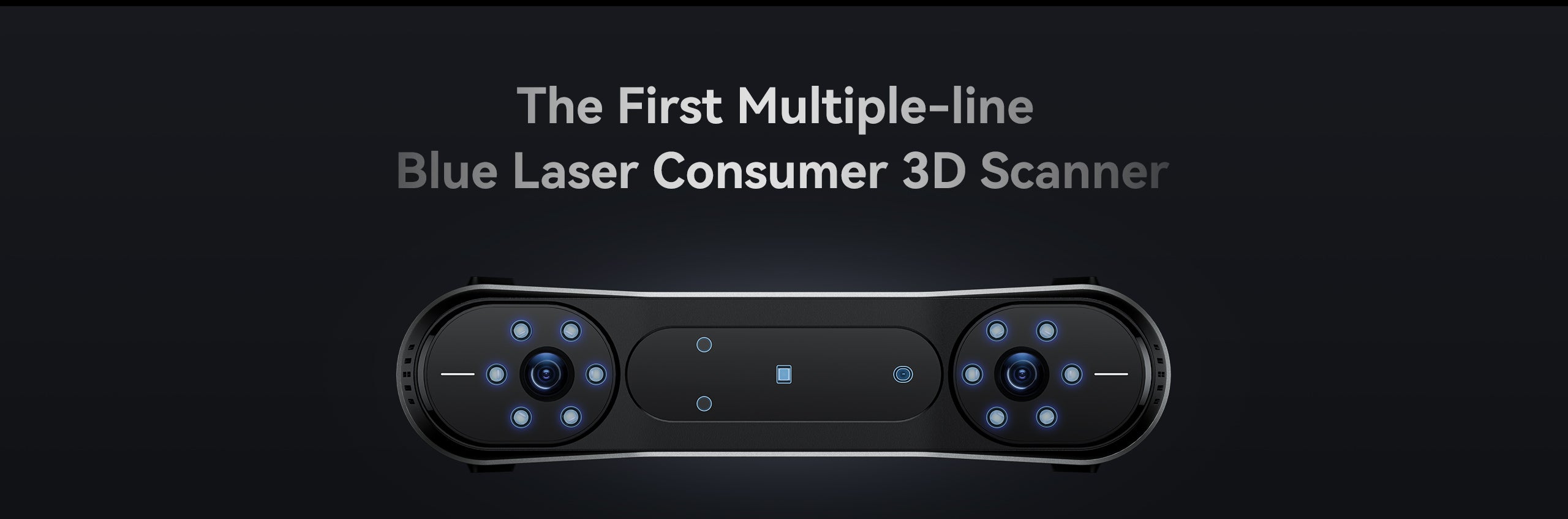

Seven-line laser capture
Blue laser mode targets fine parts, with manufacturer accuracy up to 0.02 mm at 100 mm under specified conditions.
Adapt capture to the object

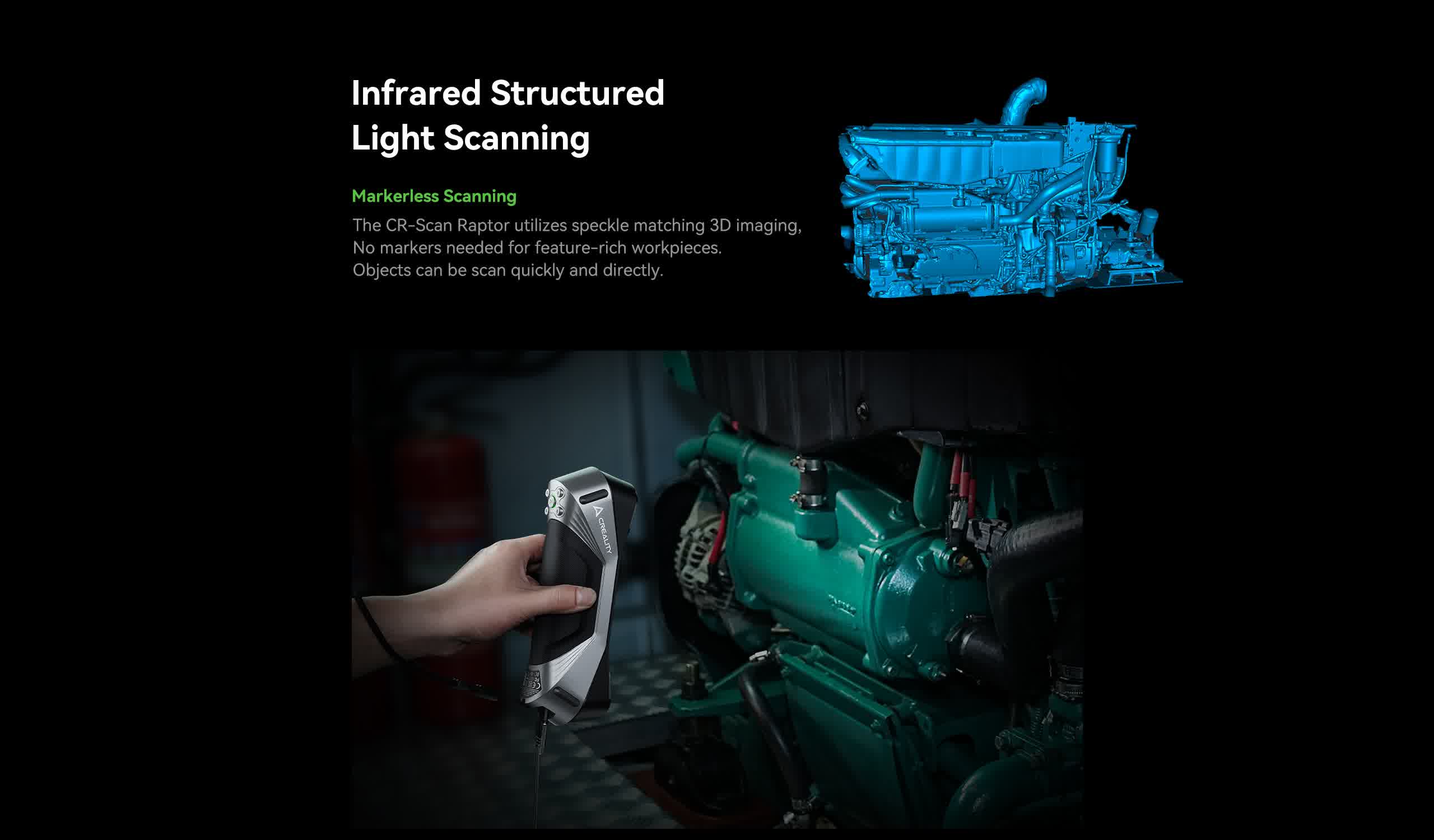

Laser mode uses markers; infrared mode also supports geometry and texture alignment for suitable objects. Seven parallel blue laser lines capture detailed geometry, while near-infrared structured light provides a second acquisition mode. Use the appropriate mode and references for the surface and object size.
Export for your workflow
CrealityScan supports scan processing and export to STL, OBJ and PLY for downstream modelling. Review coverage, process the point cloud and clean the mesh in the scanning workflow. Export the model into compatible CAD reconstruction, inspection or slicing software according to the intended result.
Calibrate before precision work
CrealityScan guides calibration with the supplied reference. Correct calibration and a suitable scanning path support consistent data; the scanner’s laboratory accuracy figure is not a guarantee for every object and setup.
Choose the connection configuration
The standard Raptor uses a computer-based scanning workflow. A compatible Scan Bridge is an optional accessory for wireless operation and should not be confused with a built-in standalone processing system.
