Accuracy (best)
Up to 0.1 mm
Creality CR-SCAN 01 3D scanner set
Dhs. 3,025.00
Skip to product information
Creality CR-SCAN 01 3D scanner set
Dhs. 3,025.00
Available on Click & Collect · Pay by card or cash at pickup, or choose bank transfer at checkout How does it work?
Capture area
536 × 378 mm
Capture modes
Handheld / turntable
Technical specifications
| Accuracy | Up to 0.1 mm |
|---|---|
| Capture area | 536 × 378 mm |
| Capture type | Handheld / turntable |
| Tracking | Automatic alignment without markers |
Creality

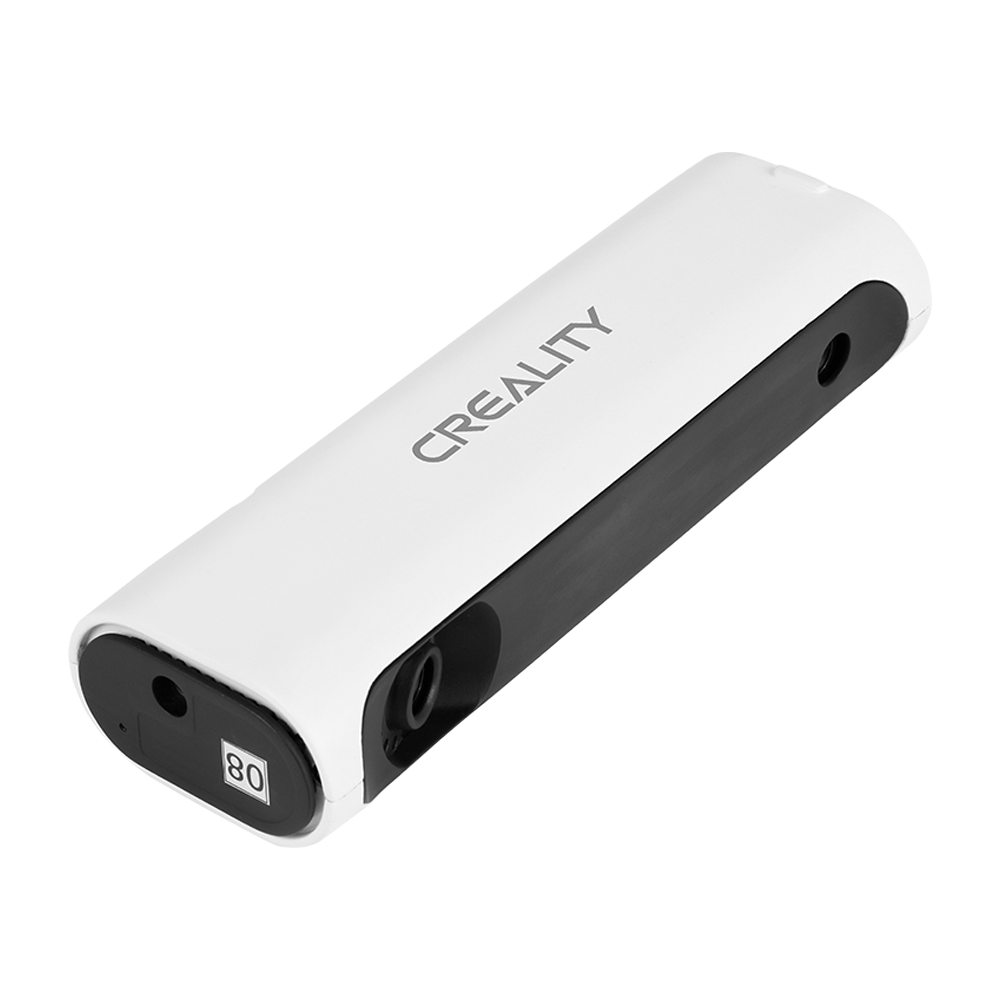

Creality CR-SCAN 01 Scanner Set
A handheld and turntable-based structured-light scanner for converting physical objects into digital models.

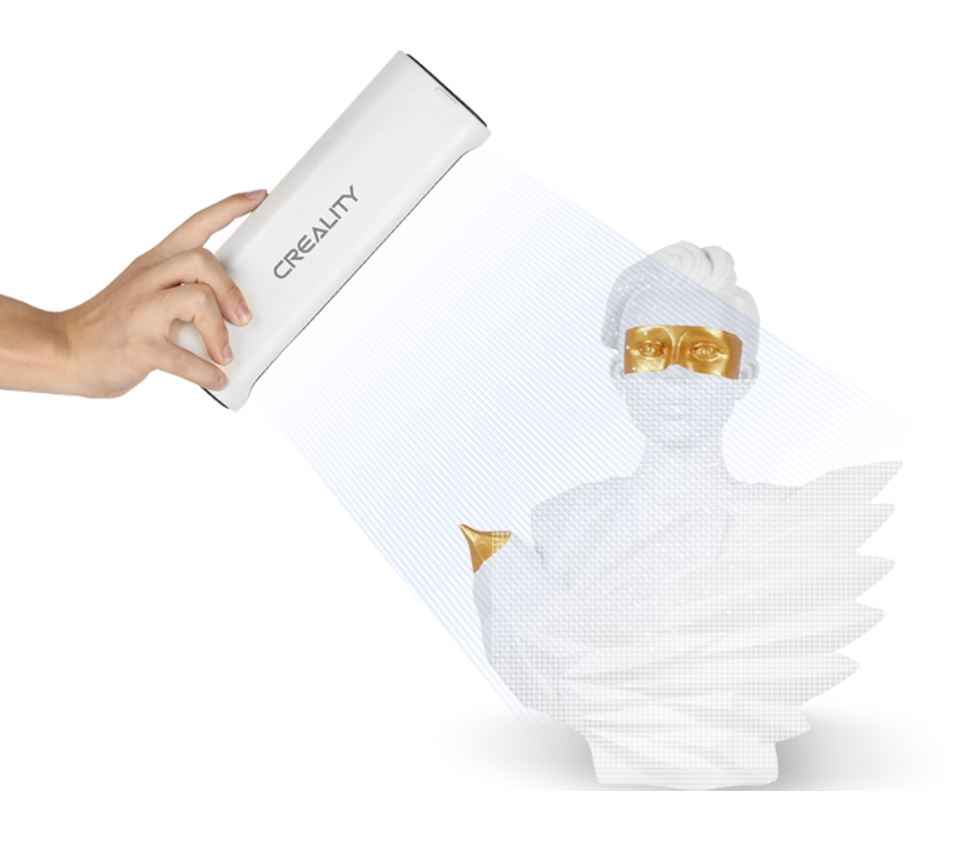

Handheld capture
Move around the object to record its geometry from different viewpoints. Handheld mode lets the operator move around the object while monitoring the live view on the computer. Maintain overlap between positions and capture missing areas before processing.

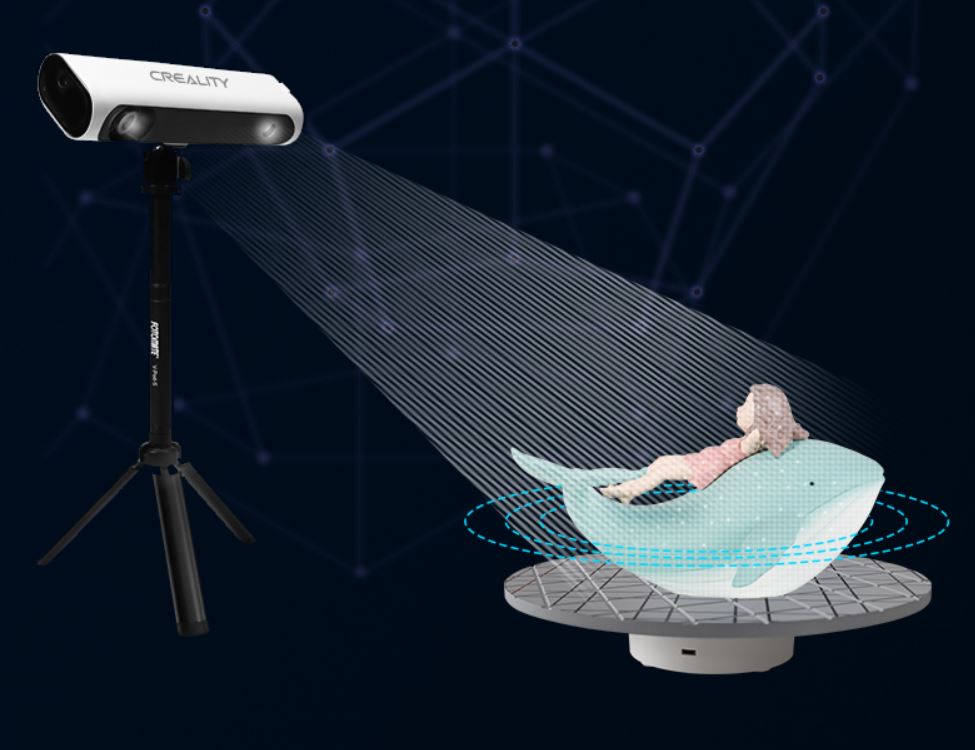

Set up automatic turntable capture
The compatible tripod and turntable configuration captures successive views automatically. Reposition the object to acquire its other side, then check alignment before combining the scans.
Align, process and export the model
Automatic processing assembles the acquired views, with manual alignment available when required. The manufacturer’s workflow exports STL for print preparation or OBJ when colour texture is needed.
Prepare the computer and accessories
CR-Scan 01 uses an external power supply and USB 3.0 connection to the computer. The tripod and turntable belong to the corresponding accessory configuration; confirm the supplied kit for this listing.
