Reinforcement
15% carbon fibre

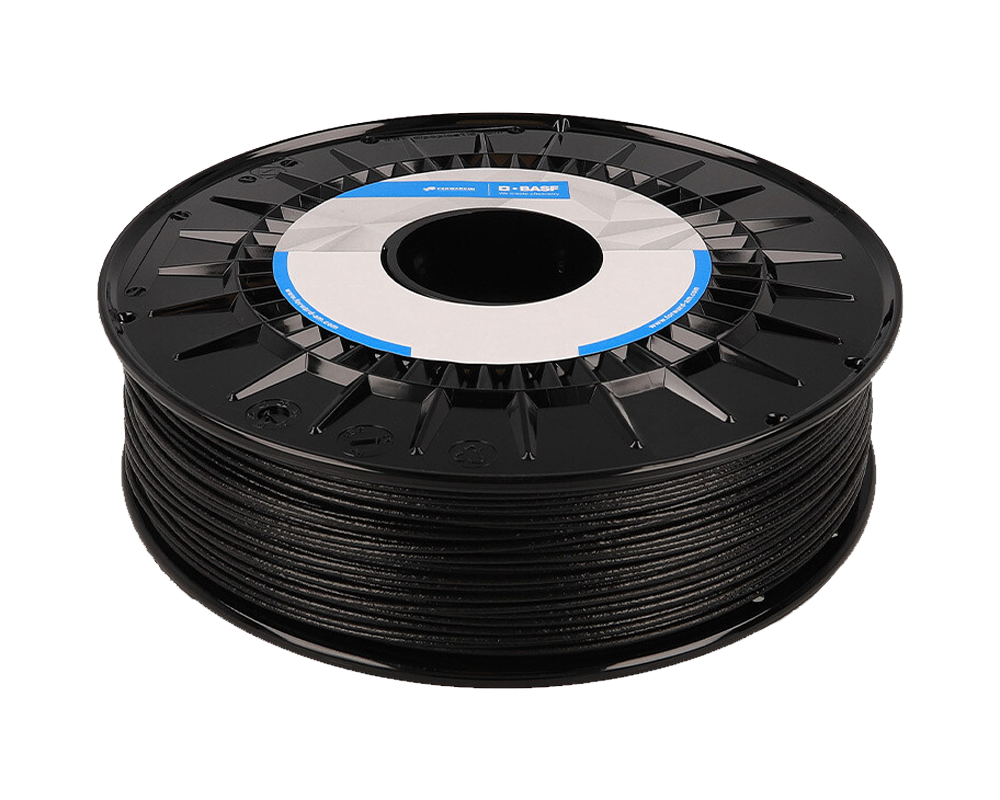

BASF Ultrafuse Filament PET CF15 1,75mm 750g Black
Dhs. 303.00
Skip to product information
BASF Ultrafuse Filament PET CF15 1,75mm 750g Black
Dhs. 303.00
Available on Click & Collect · Pay by card or cash at pickup, or choose bank transfer at checkout How does it work?
Moisture uptake
Low
HDT · 0.45 MPa
108°C
Technical specifications
| Material | PET + 15% carbon fibre |
|---|---|
| Manufacturing process | FDM / FFF |
| Filament diameter | 1.75 mm |
| Net filament weight | 750 g |
| Nozzle temperature | 250–270 °C |
| Bed temperature | 100–120 °C |
| Printing speed | 30–80 mm/s |
| Recommended nozzle diameter | 0.6 mm |
| HDT at 0.45 MPa | 108 °C |
| Tensile strength (XY) | 63.2 MPa |
| Nozzle material | Wear-resistant / hardened nozzle |
| Data interpretation | Typical manufacturer values. Printing settings depend on printer and plate; mechanical and HDT data are not guaranteed operating limits. |
BASF
BASF Ultrafuse PET CF15
Consider jigs, fixtures and automotive development components. Evaluate loading along and across the layers when checking the final design.
15% carbon reinforcement
Ultrafuse PET CF15 combines PET with 15% carbon fibre for strong, rigid printed components.
Low moisture absorption
The material is suited to applications where dimensional stability in humid conditions is important.
Industrial processing balance
The manufacturer positions PET CF15 as a processable engineering composite for demanding functional parts.
Fixtures and mechanical prototypes
Consider jigs, fixtures and automotive development components. Evaluate loading along and across the layers when checking the final design.
Use the specified nozzle setup
Forward AM recommends a hardened or ruby 0.6 mm nozzle, a heated build surface and controlled printing speed. Follow the PET CF15 profile rather than a generic PETG profile.
15% carbon-fibre reinforcement
Ultrafuse PET CF15 combines a PET base with 15% carbon fibre for rigid technical components. Low moisture uptake supports applications in humid environments.
Build surface and nozzle
The manufacturer recommends a hardened or ruby nozzle, ideally 0.6 mm, with glass or PEI as the build surface. The technical sheet specifies no part-cooling fan and 0.2–0.4 mm layers.
Support-material options
The manufacturer lists BVOH and HIPS as support options. Choose a removal process compatible with the model; HIPS is not a water-soluble support.
In the box
1 spool of BASF Ultrafuse PET CF15 — 750 g, selected colour
