| Description | ASTM method |
Metric (Post-curing for 5 minutes by LED at 20°C in glycerin or water) |
Imperial (Post-curing for 5 minutes by LED at 20°C in glycerin or water) |
| Tensile strength | D638M | 1.5 MPa | 0.22 ksi |
| Elongation at break | D638M | 140 - 180% | 140 - 180% |
| shore A hardness | D2240 | 43 | 43 |
| Tear strength | D624 | 10 - 12 kN/ m | 10 - 12 kN/ m |
Compression set 24 hours at 22°C |
D395 | 1% | 1% |
| Temperature degradation | Internal method | >250°C * | > 482°F * |
| Water sorption | D570-98 | 1.5% | 1.5% |
| TG | D7028 | -5°C | 23°F |
| * Discoloration at 140°C, increase in rigidity at 220°C - Shore A 54. No cracks in the part up to 250°C / 482°F. |
Technical specifications
تفاصيل المنتج
Excellent elongation
High elasticity
Possible to color / dye

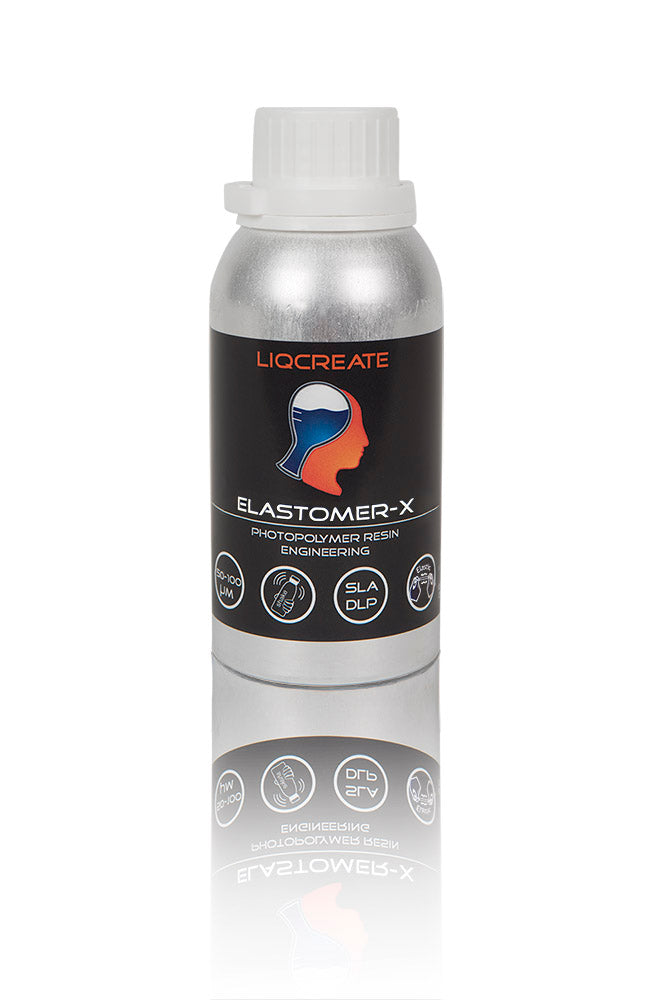

Liqcreate Resin Elastomer-X 1kg
A highly flexible and elastic resin for digital light processing (DLP), liquid crystal displays (LCD) and laser 3D printers. Liqcreate Elastomer-X resin is perfect for making elastic parts and flexible digital mesh structures.
Liqcreate Elastomer-X is a transparent photopolymer resin that can be used on most resin-based 3D printers. 3D printed parts made from this material are exceptionally soft with a Shore A rating of 43 and have high flexibility. The product can be used as is, or coloured with almost any commercially available 3D resin dye. Liqcreate Elastomer-X can be used on DLP, LCD and open SLA 3D printers in the 385 - 420nm range. Its properties simulate soft TPU and silicone, making it perfect for the production of digital mesh foams, flexible robot tools, gaskets, bellows and elastic industrial parts.
3D printer compatibility
- Shining3D Accufab L4K/L4D/D1s
- Les séries Elegoo et Anycubic
- Les series Phrozen et Peopoly
- Open 385 - 420nm DLP, LCD and SLA 3D-printers
Example of a printed part
Included items
Content of order
• 1 bottle of Liqcreate Elastomer-X 1KG
Contact our UAE team for pricing and availability.
