Description

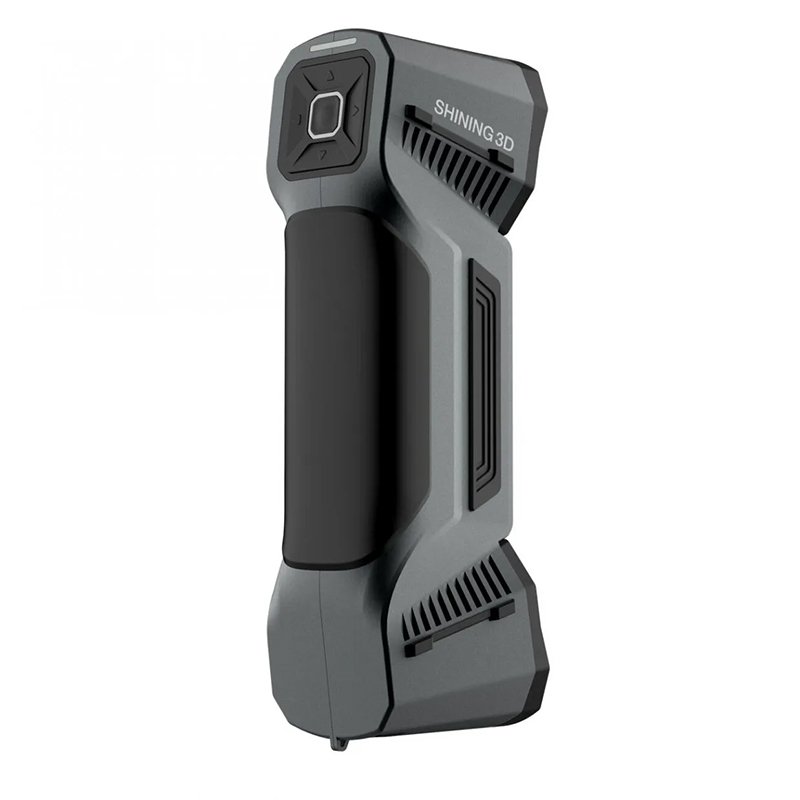

Compact metrology 3D scanner

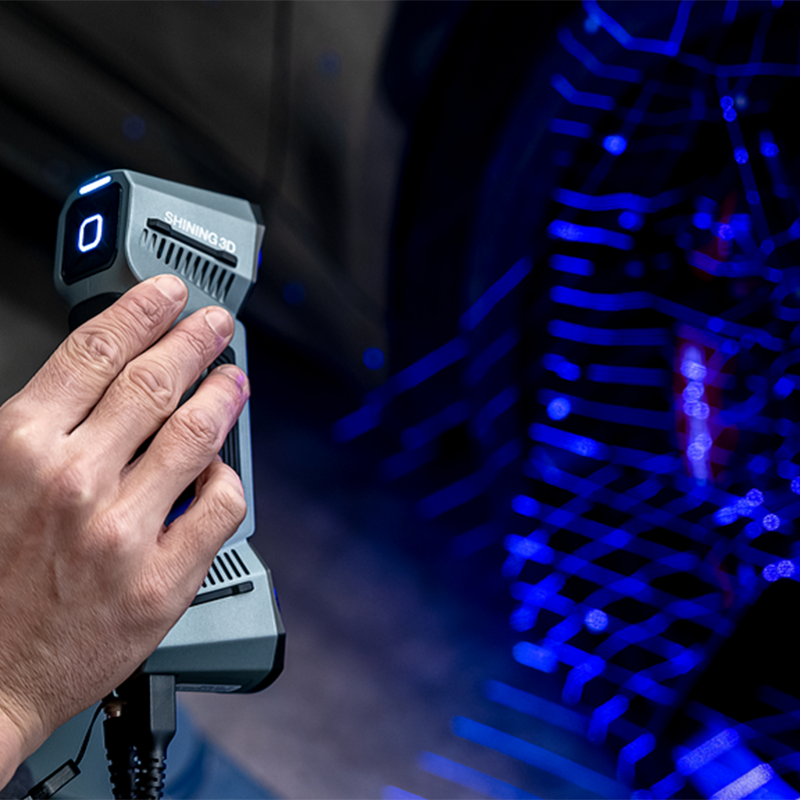

Blue laser and infrared VCSEL

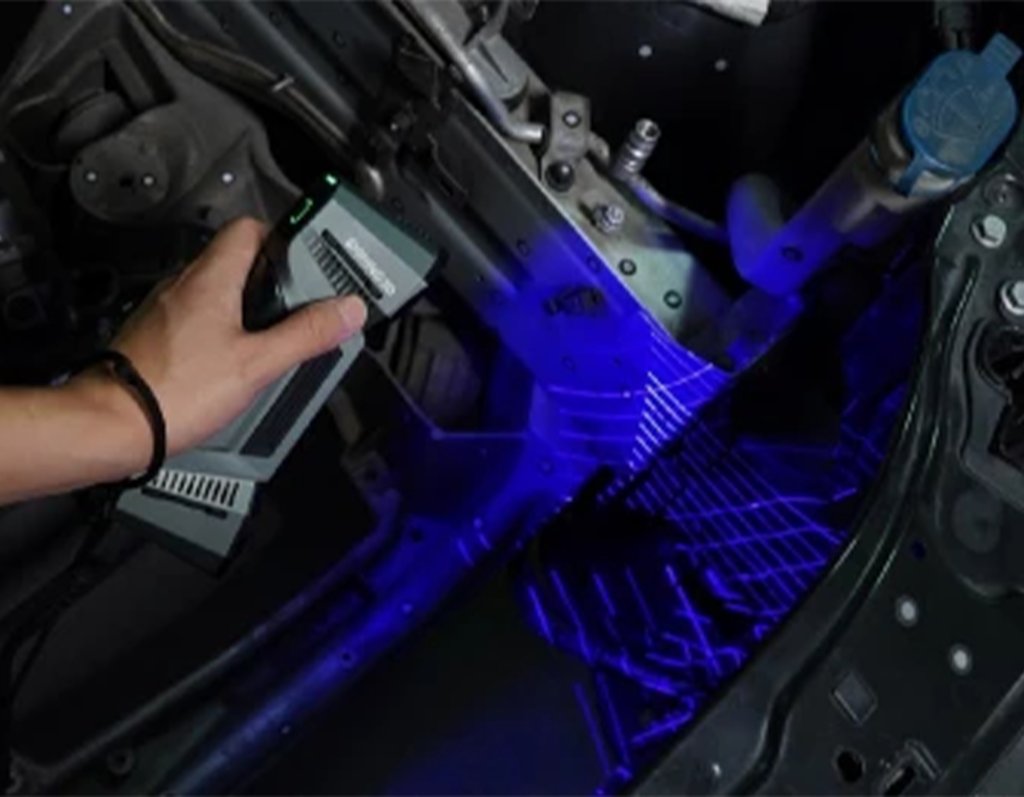

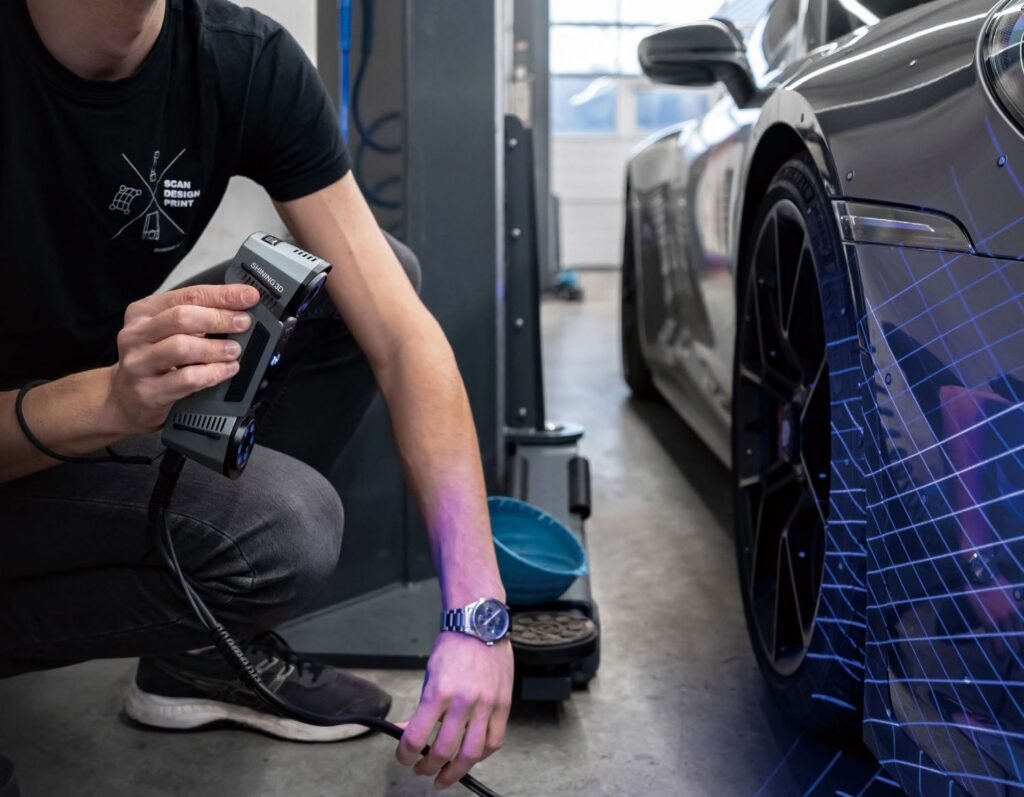

3D scanning of complex objects
-
Maximal Accuracy
20 microns
-
Volumetric Accuracy
0.02 mm + 0.033 mm/m
Light and compact

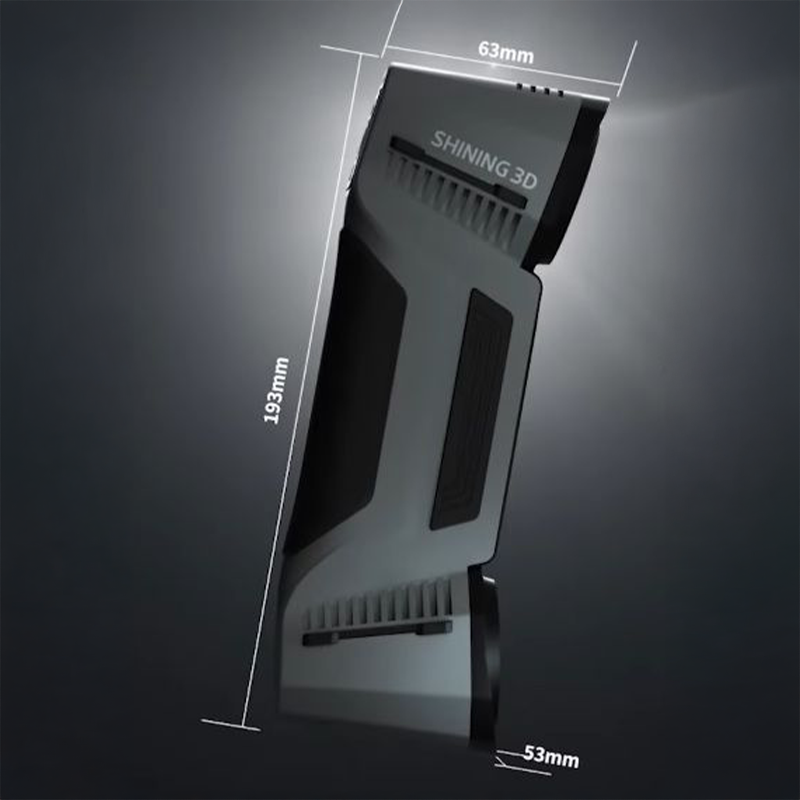

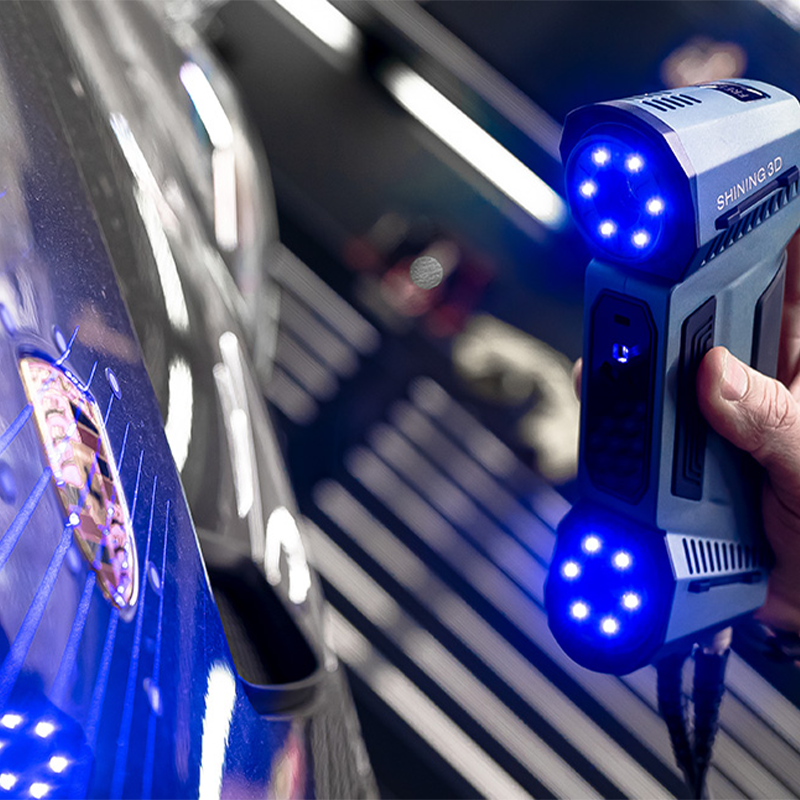

The FreeScan Combo, with a small size of 193x63x53mm and weighing only 620g, has two light sources: blue laser and infrared VCSEL.
High precision of metrological quality
Metrology-grade accuracy* under multi-line scanning mode can reach up to 0.02 mm.
*According to VDI-VDE 2634-2
Easy to use
The FreeScan Combo software is intuitive. It guides you through your workflow to help you achieve the best possible scan result.

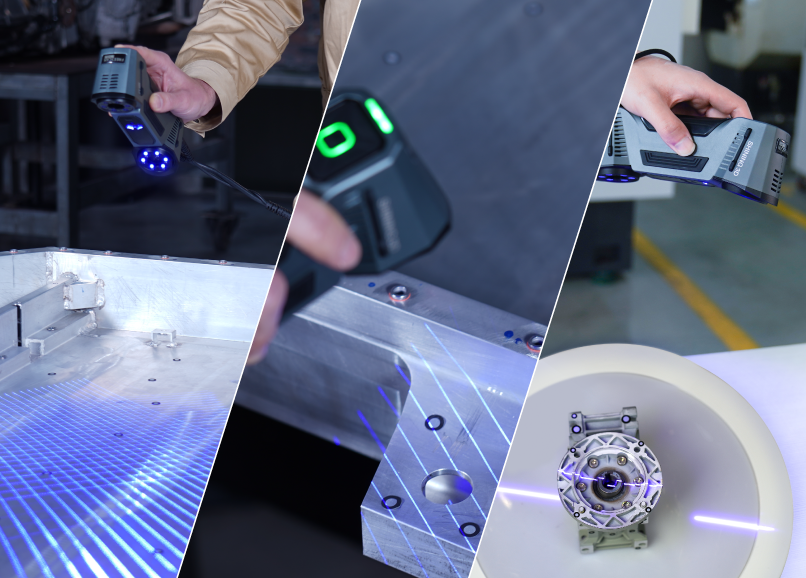

4 scan modes for various applications
26 laser lines for global scanning

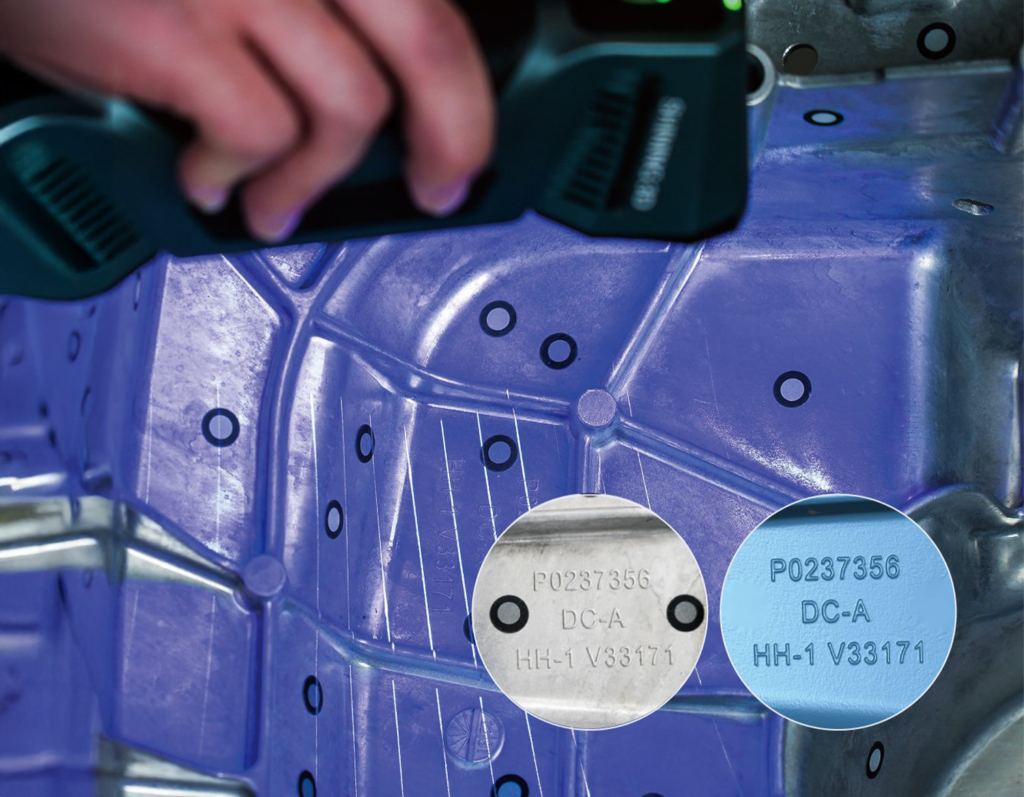

7 parallel blue laser lines for fine scanning details
1 single blue laser line to obtain deep hole data
Infrared light source scanning fast and without markers.

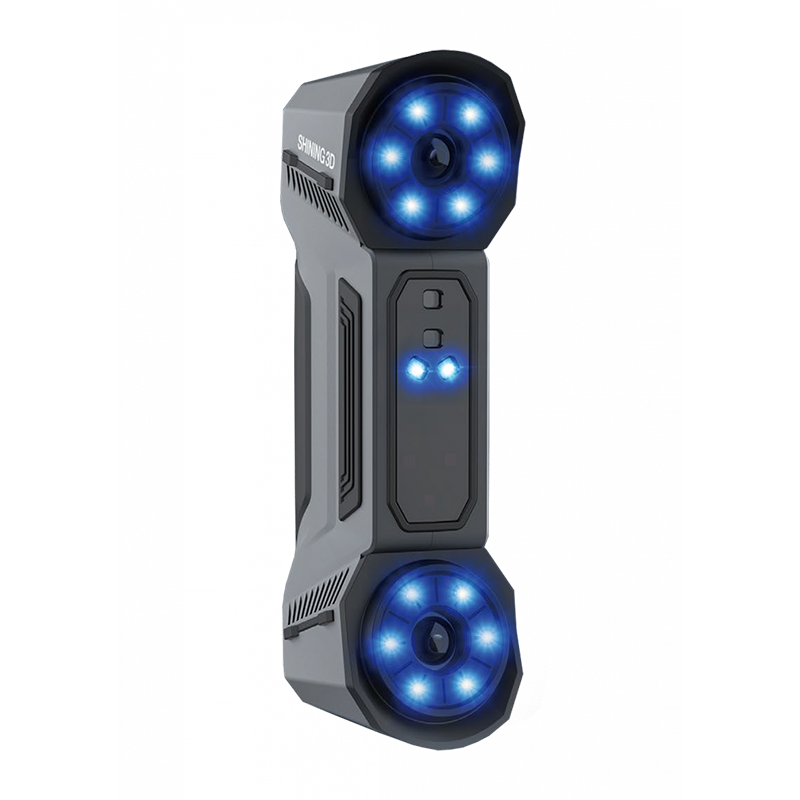

Lightweight and compact metrology 3D scanner with hybrid light source
High printing volume
• Hybrid light source (blue laser and infrared VCSEL)
• 4 scanning modes
• Accurate and fine detail scanning
• Adaptability to a wide range of materials
• Ergonomic, compact and practical design
• Powerful dedicated software
|
Properties |
Data | |
|
Brand |
Shining 3D |
|
|
Product |
Transcan C |
|
|
Light Source |
White LED Light |
|
|
Calibration Mode |
Manual calibration |
|
|
Scan Mode |
Structured-light scan with automatic turntable |
|
|
Scan Range |
150 mm x 96 mm |
300 mm x 190 mm |
|
Single Shot Accuracy |
0.035 mm |
0.05 mm |
|
Scan Speed |
<70 s (8 scans/turn without texture); <3 s (single frame without texture) |
|
|
Texture Color |
RGB 24-bit color |
|
|
Texture acquisition method |
Fully automatic soft light shooting |
|
|
Texture Map |
12 megapixels, high fidelity color |
|
|
Align Mode |
markers alignment; feature alignment; manual alignment |
|
|
Working Distance |
260 mm |
480 mm |
|
Point Distance |
0.0375 mm；0.075 mm；0.114 mm |
0.075 mm；0.154 mm；0.23 mm |
|
Data Format |
OBJ, STL, ASC, PLY,3MF |
|
|
Working Temperature |
Indoor, room temperature |
|
|
System |
Win10; 64-bit |
|
|
Recommended Computer Configuration |
Graphics card: NVIDIA GTX/RTX series cards, higher or equal to GeForce RTX 1060; Video memory: ≥4 G; Processor: I7-8700; Memory: 32 GB |
|
|
Size |
Host module: 332 mm x 110 mm x 142 mm (bare machine size) Tripod components: 475 mm x 120 mm x 120 mm (bare machine size) Turntable module: 320 mm x 320 mm x 68 mm (bare machine size) |
|
|
Weight Maximum |
Host module: 2.7 KG (net weight)Tripod assembly: 2.2 KG (net weight) Turntable module: 2.1 KG (net weight) |
|
|
Turntable Load-Bearing Capacity |
≤10 KG |
Brochure + Technical Data Sheet
Technical support
- 1 FreeScan Combo 3D Scanner
- 1 FreeScan Combo capture software
- 1 Pack of markers
- 1 USB cable
- 1 Power supply
- 1 Transport case
- 1 year warranty
|
Properties |
Data | |
|
Brand |
Shining 3D |
|
|
Product |
Transcan C |
|
|
Light Source |
White LED Light |
|
|
Calibration Mode |
Manual calibration |
|
|
Scan Mode |
Structured-light scan with automatic turntable |
|
|
Scan Range |
150 mm x 96 mm |
300 mm x 190 mm |
|
Single Shot Accuracy |
0.035 mm |
0.05 mm |
|
Scan Speed |
<70 s (8 scans/turn without texture); <3 s (single frame without texture) |
|
|
Texture Color |
RGB 24-bit color |
|
|
Texture acquisition method |
Fully automatic soft light shooting |
|
|
Texture Map |
12 megapixels, high fidelity color |
|
|
Align Mode |
markers alignment; feature alignment; manual alignment |
|
|
Working Distance |
260 mm |
480 mm |
|
Point Distance |
0.0375 mm；0.075 mm；0.114 mm |
0.075 mm；0.154 mm；0.23 mm |
|
Data Format |
OBJ, STL, ASC, PLY,3MF |
|
|
Working Temperature |
Indoor, room temperature |
|
|
System |
Win10; 64-bit |
|
|
Recommended Computer Configuration |
Graphics card: NVIDIA GTX/RTX series cards, higher or equal to GeForce RTX 1060; Video memory: ≥4 G; Processor: I7-8700; Memory: 32 GB |
|
|
Size |
Host module: 332 mm x 110 mm x 142 mm (bare machine size) Tripod components: 475 mm x 120 mm x 120 mm (bare machine size) Turntable module: 320 mm x 320 mm x 68 mm (bare machine size) |
|
|
Weight Maximum |
Host module: 2.7 KG (net weight)Tripod assembly: 2.2 KG (net weight) Turntable module: 2.1 KG (net weight) |
|
|
Turntable Load-Bearing Capacity |
≤10 KG |
Brochure + Technical Data Sheet
Technical support
- 1 FreeScan Combo 3D Scanner
- 1 FreeScan Combo capture software
- 1 Pack of markers
- 1 USB cable
- 1 Power supply
- 1 Transport case
- 1 year warranty
Discover the FreeScan Combo in video!
