Description
-
Accuracy
50 microns (0,05 mm / layer)
-
Build Plate dimensions
400 x 350 x 500 mm
-
Compatible material
PLA, PLA+, ABS, ABS+, PVA, PETG, PC, PP, PAHT, PC-ABS, PC, HIPS, PA, ASA, etc.
Dual Extrusion
Thermal Control System
High-Precision Printing
Build Volume

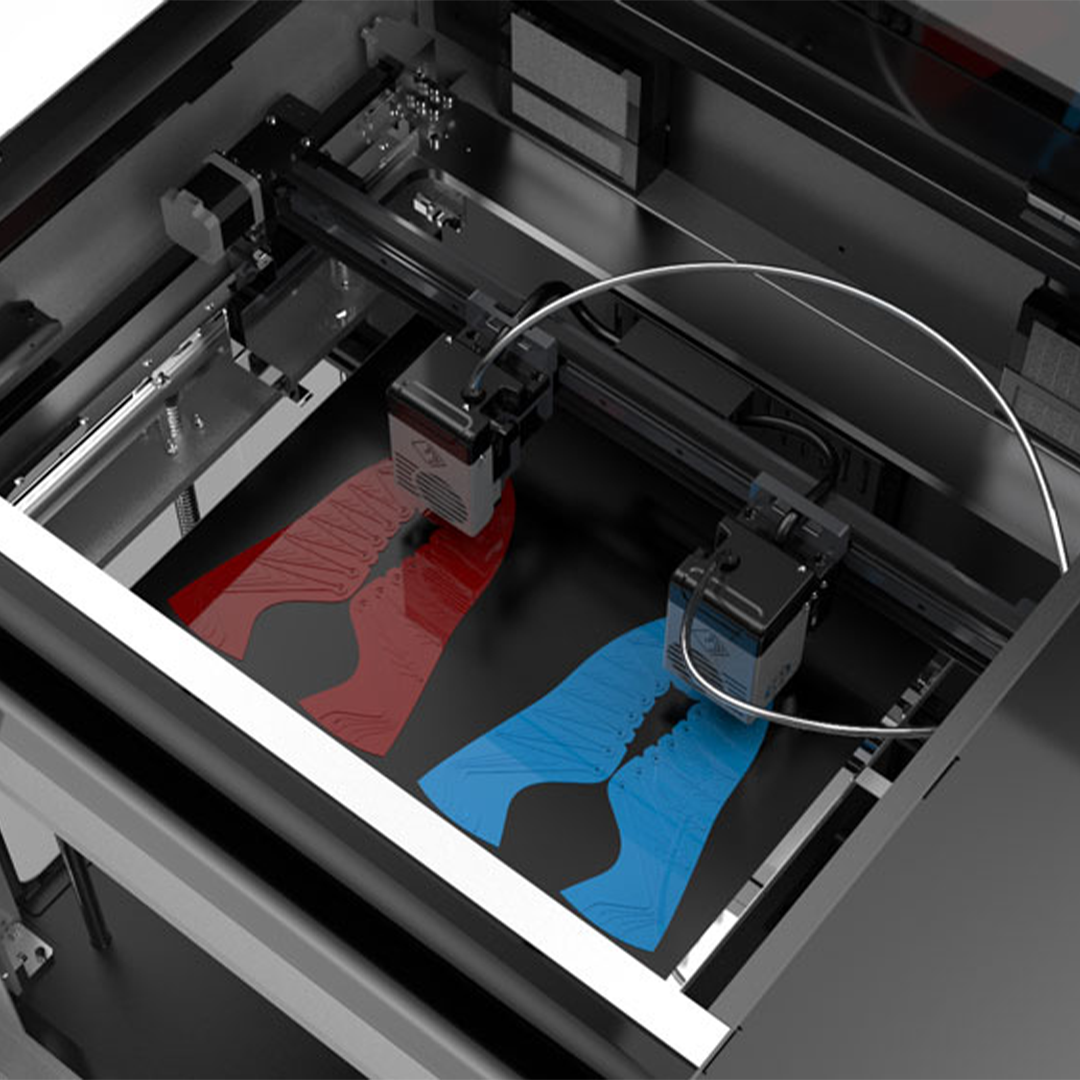

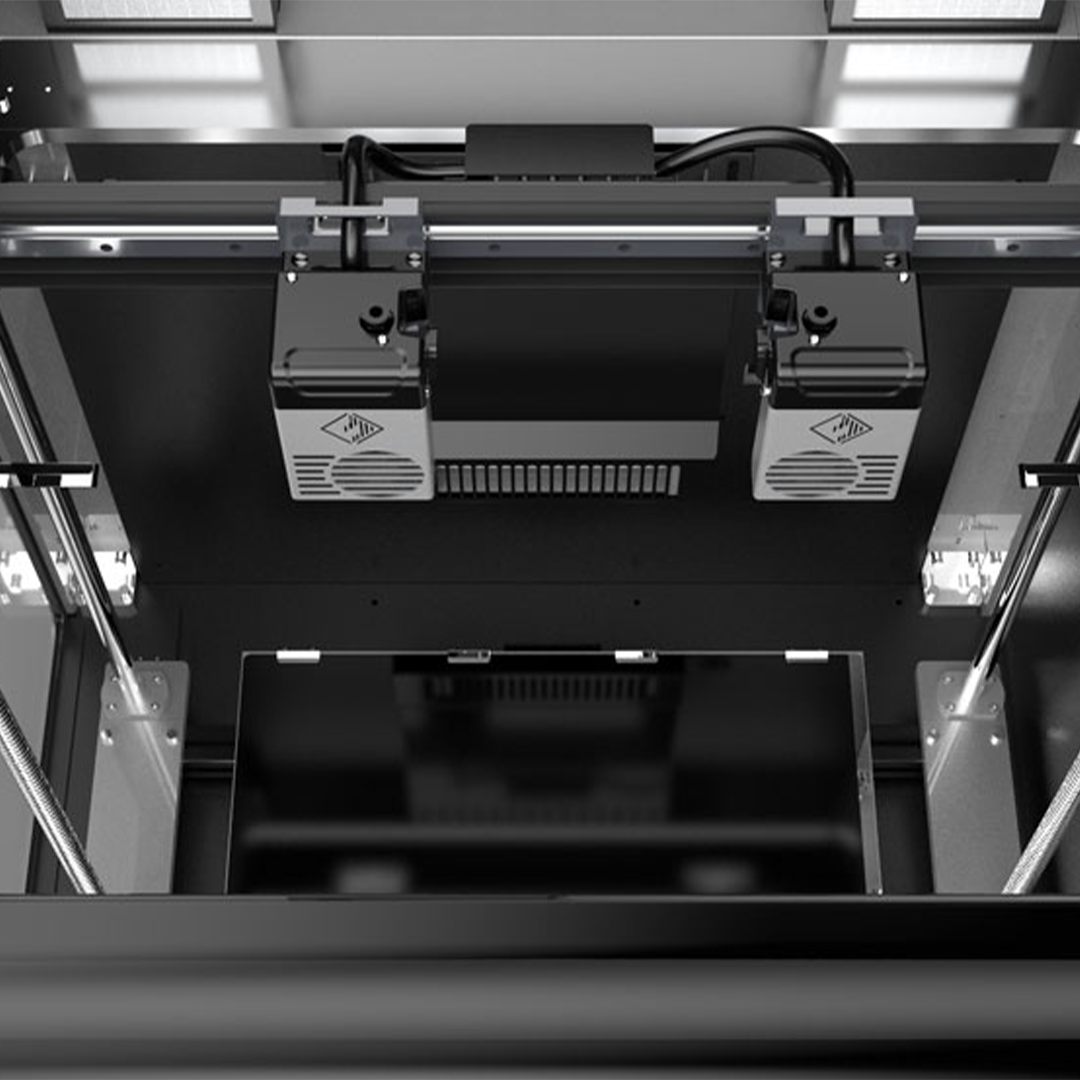

Dual extruders working independently
The Creator 4’s two extruders work independently, not grouped together. When you select single extrusion, the other extruder moves away from the print area, so there is no filament spillage on the printed object. Plus, both extruders can work simultaneously and independently to double your prints.

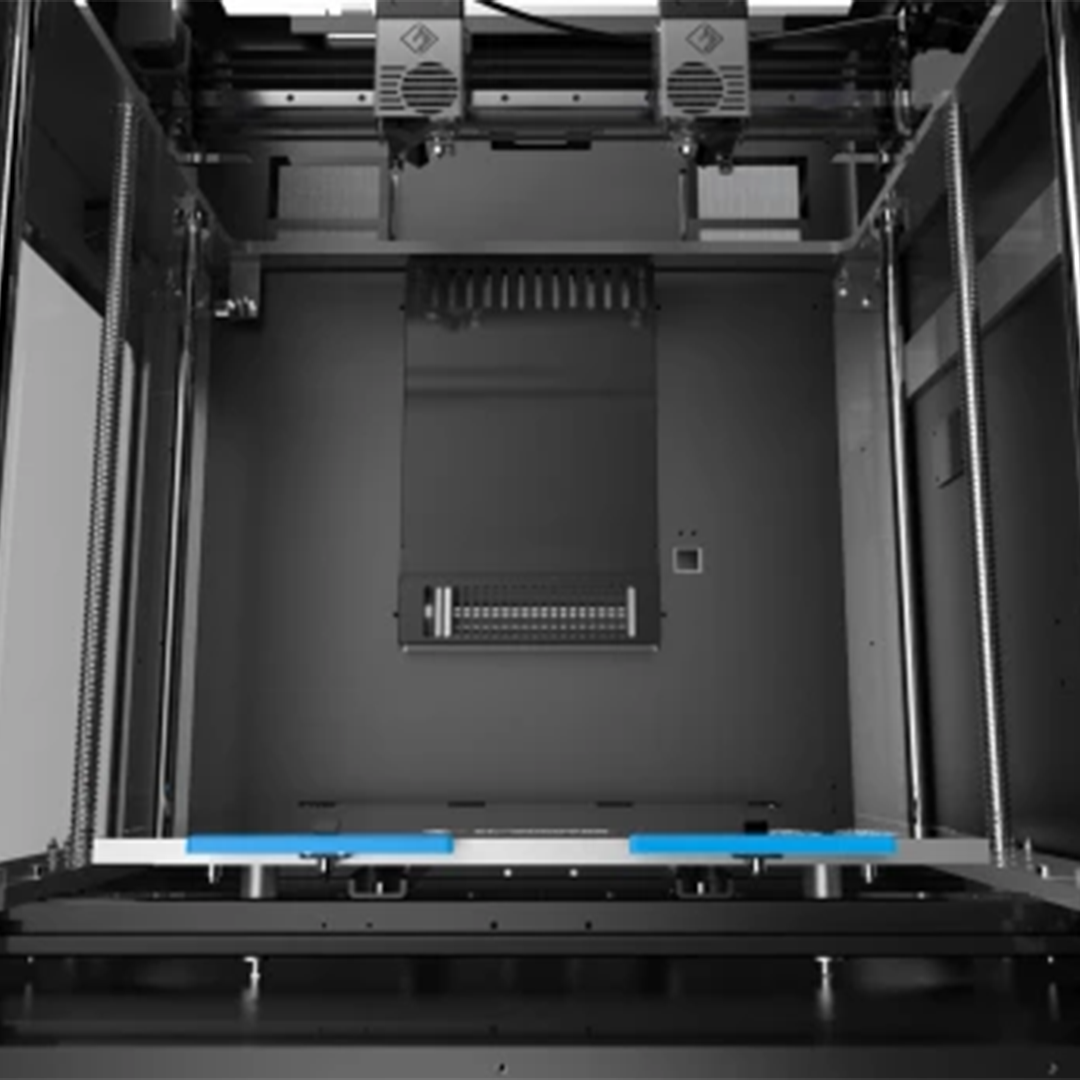

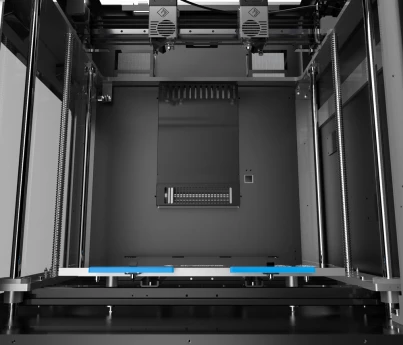

High-precision printing
Linear rail lead screw walking along X and Y axes greatly improves motion stability, resulting in better printing accuracy.
All-new S-type motion control system provides smoother start and stop, precise nozzle positioning, and superb print detail.
The CNC structure keeps the machine stable and less shaken when working.

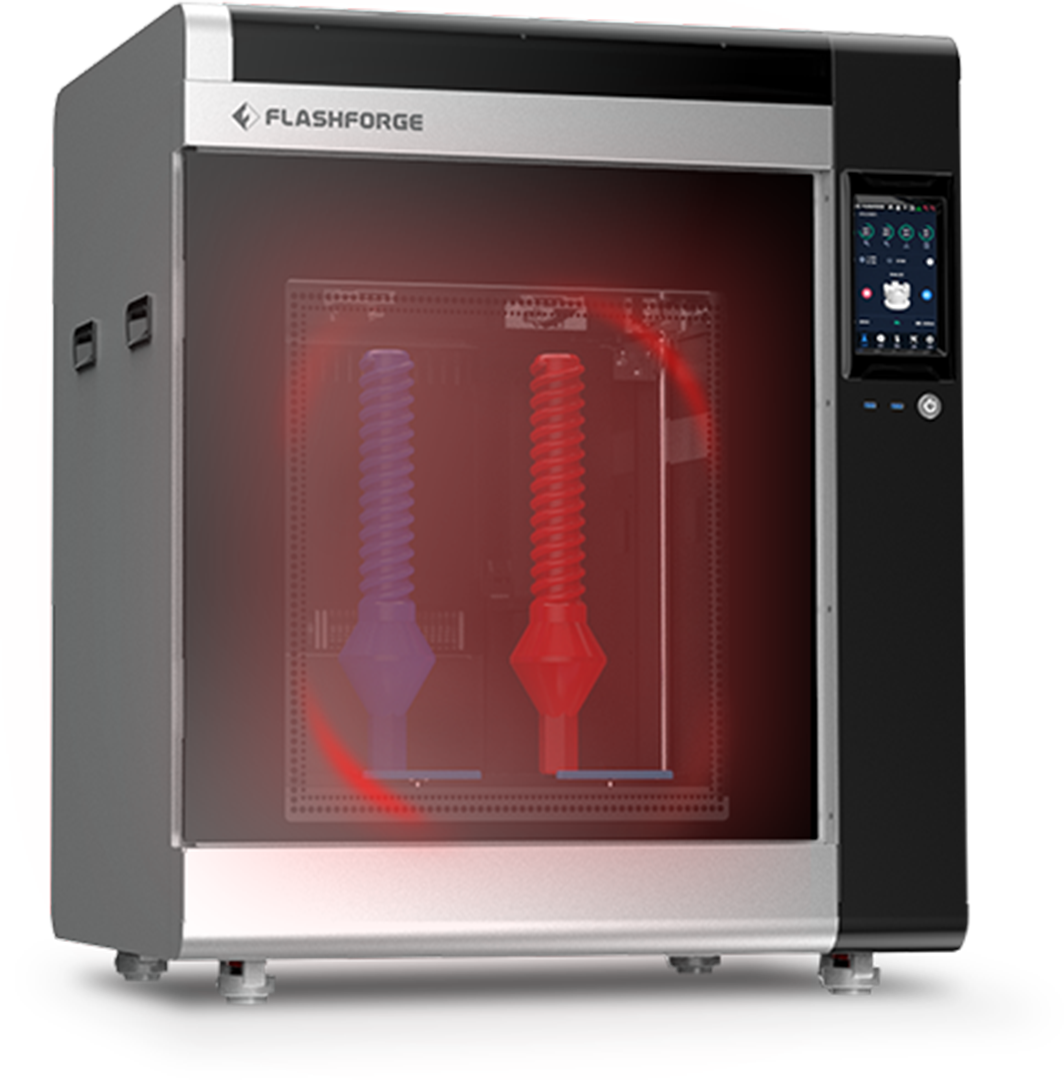

Thermal control system
The Creator 4’s advanced thermal control system keeps the print chamber at 65℃, effectively reducing model shrinkage. Different types of filaments can be automatically adjusted to different preheating temperatures in the chamber, which can greatly improve a printing success rate. After printing is finished, the chamber temperature can be automatically adjusted for model cooling. It also benefits from a closed frame to protect the prints from temperature changes or drafts. The integrated air filter can filter up to 95% of particle emissions.

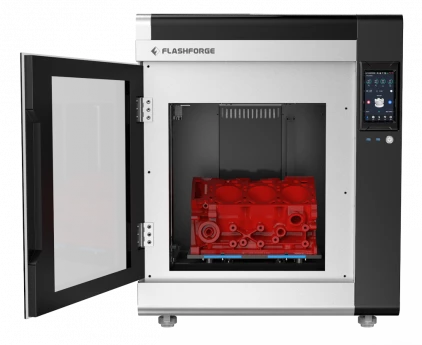

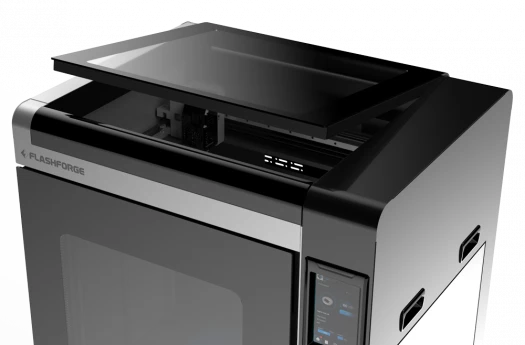

Large build volume
The 500mm vertical height meets the printing needs of most manufacturers. This large-scale professional 3D printer can be used to 3D print large prototypes. This allows companies to test their products before launching production.
FlashPrint is a user-friendly slicer suitable for both beginners and experts, featuring intuitive controls, recognizable menus, and quick-access tools for repositioning, rotating, cutting, and scaling 3D files.
Korey Torres
Quick and easy nozzle detachment
Terry Dennis
Internal and external filtration to protect your respiratory system
Katy Gilmore
| Properties | Data |
|---|---|
| Brand | Flashforge |
| Dimensions |
840 x 675 x 1050 mm |
| Technology | FDM |
| Screen |
7-inch Touch Screen |
| Printing speed (max) |
200 mm/s |
|
Net weight |
90 kg |
|
Extruder |
2, independent |
|
Print volume |
400 x 350 x 500 |
|
Layer Resolution |
50- 400 microns |
| Installed nozzle diameter | 0,4 mm (option 0,6/0,8/0,25) |
| Filament diameter | 1,75 mm |
| Layer thickness | 0,1 to 0,4 mm |
| Auto Leveling | Yes |
| Filament run-out reminder | Yes |
|
Positioning precision |
Axes X/Y 0,0125 mm ; Axis Z 0,0025 mm |
| Vibration compensation | Yes |
| Plate temperature | Up to 110° |
| Power Supply | AC 100-240V, 50/60Hz, 350W |
| Connectivity | USB, Wi-Fi, Ethernet, Cloud |
| Printing Volume | 220 x 220 x 220 mm |
| Filament Compatibility |
PC / PA / PP / PETG / ASA / ABS / PLA / PC-ABS / PAHT |
| Printing nozzle | 1 |
| Air filter | Double-layer filter (HEPA + activated carbon) |
| Softwares | Flashprint, Cura, Orca Slicer (set up necessary) |
| Timelapse video | Yes |
Brochure
   • 1 Flashforge Creator 4 3D Printer
   • 1 spool of filament
   • 1 USB keyÂ
   • 1 starter kit of maintenance accessories
   • Flashprint Software
   • Machines-3D Hotline assistance
   • 1-year warranty
| Properties | Data |
|---|---|
| Brand | Flashforge |
| Dimensions |
840 x 675 x 1050 mm |
| Technology | FDM |
| Screen |
7-inch Touch Screen |
| Printing speed (max) |
200 mm/s |
|
Net weight |
90 kg |
|
Extruder |
2, independent |
|
Print volume |
400 x 350 x 500 |
|
Layer Resolution |
50- 400 microns |
| Installed nozzle diameter | 0,4 mm (option 0,6/0,8/0,25) |
| Filament diameter | 1,75 mm |
| Layer thickness | 0,1 to 0,4 mm |
| Auto Leveling | Yes |
| Filament run-out reminder | Yes |
|
Positioning precision |
Axes X/Y 0,0125 mm ; Axis Z 0,0025 mm |
| Vibration compensation | Yes |
| Plate temperature | Up to 110° |
| Power Supply | AC 100-240V, 50/60Hz, 350W |
| Connectivity | USB, Wi-Fi, Ethernet, Cloud |
| Printing Volume | 220 x 220 x 220 mm |
| Filament Compatibility |
PC / PA / PP / PETG / ASA / ABS / PLA / PC-ABS / PAHT |
| Printing nozzle | 1 |
| Air filter | Double-layer filter (HEPA + activated carbon) |
| Softwares | Flashprint, Cura, Orca Slicer (set up necessary) |
| Timelapse video | Yes |
Brochure
   • 1 Flashforge Creator 4 3D Printer
   • 1 spool of filament
   • 1 USB keyÂ
   • 1 starter kit of maintenance accessories
   • Flashprint Software
   • Machines-3D Hotline assistance
   • 1-year warranty
