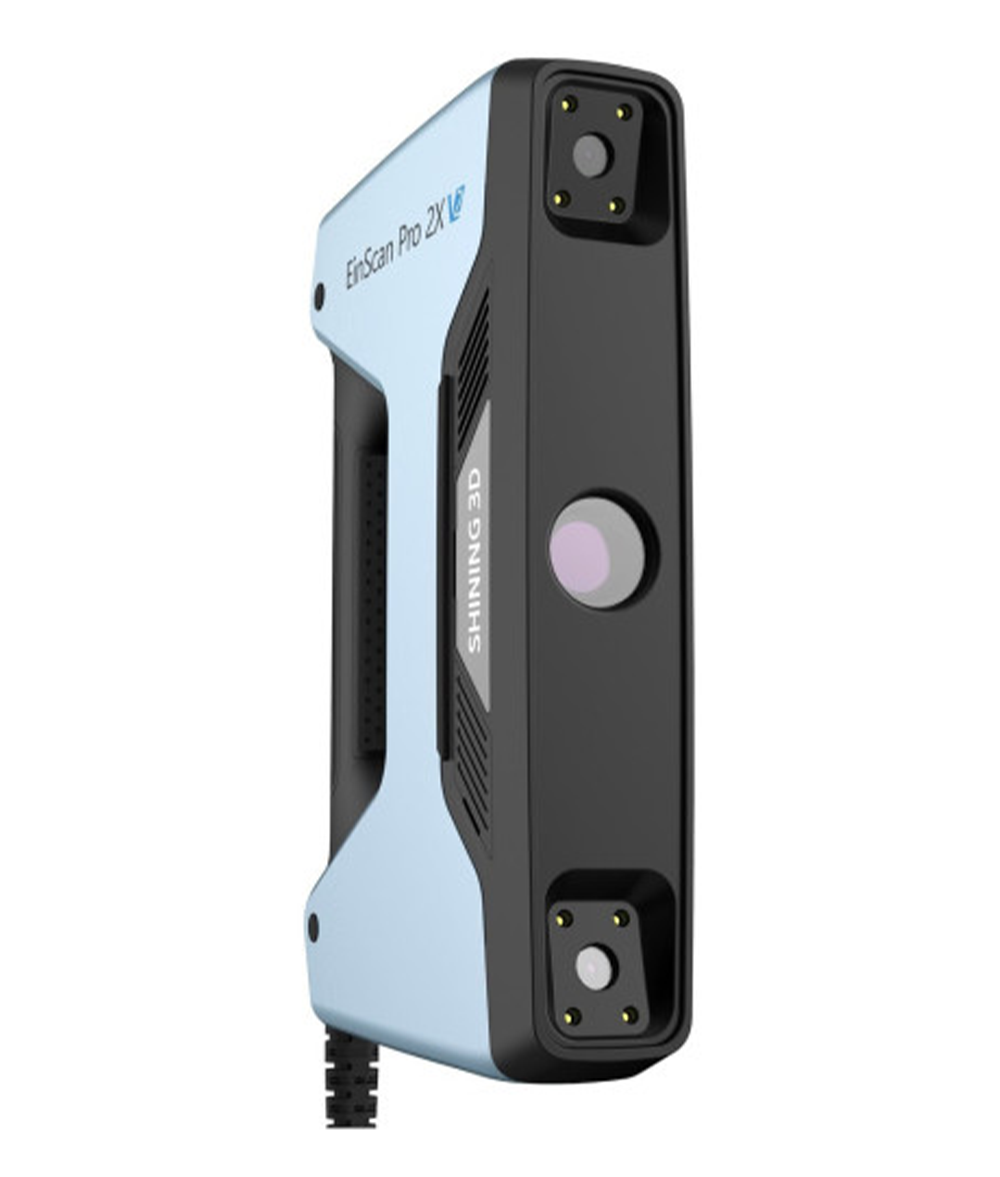

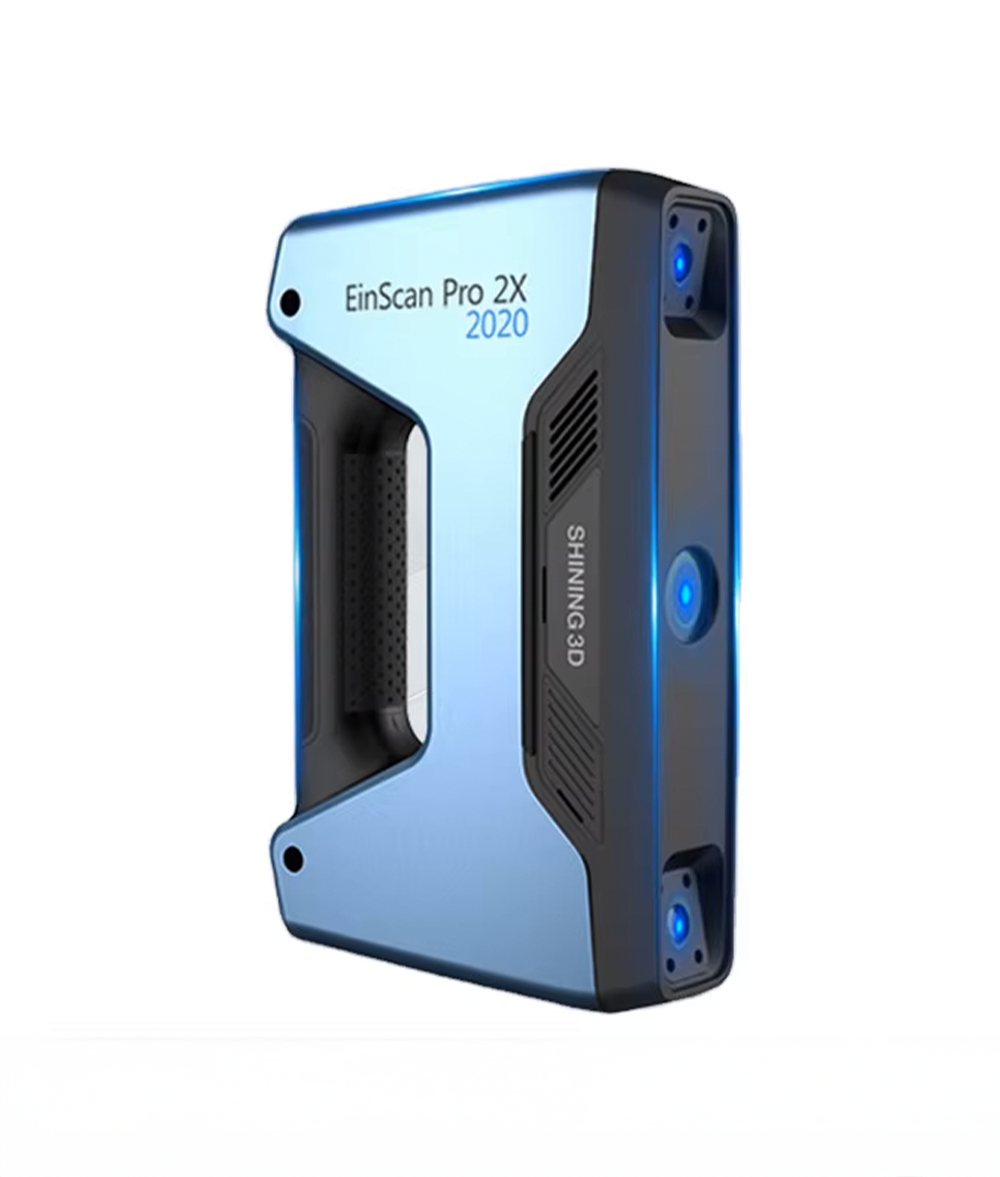

Einscan Pro 2X V2
Einscan Pro 2X V2 - Image 2
Einscan Pro 2X V2 - Image 3
Einscan Pro 2X V2 - Image 4
Einscan Pro 2X V2 - Image 5

Einscan Pro 2X V2

Category

22.796,00 د.إ

Made by Shining 3D, the exclusive partner of Machines-3D in France, and one of the leading 3D scanners in the world, the Einscan Pro 2X Plus is an affordable, multi-functional, and portable 3D scanner. It allows 3D scanning of small and medium-sized objects in high accuracy and in just a few minutes. Using 4 different scan modes, you can scan mechanical, art, design parts, as well as parts of the body. Its software, included with the machine, allows you to perform your scans in complete simplicity, to visualize the result in real-time, and to export it to formats stl, obj, ply, asc, 3mf and p3. It extends its ability to scan in colors with an optional module.

  • Maximal accuracy

    Handheld HD Scan: 0.045mm Handheld Rapid Scan: 0.1 mm Fixed scan with turntable: 0.04 mm Fixed scan without turntable: 0.04 mm

  • Possible dimensions of 3D scan

    Minimum 0.2 mm to several meters (according to the modes)

  • Scan speed

    Handheld HD Scan: 10 fps (3 000 000points/s) Handheld Rapid Scan: 30 fps (1 500 000 points/s) Fixed scan with turntable: <1s per scan Fixed scan without turntable: <1s per scan

A multifunctional scanner with 4 scan modes

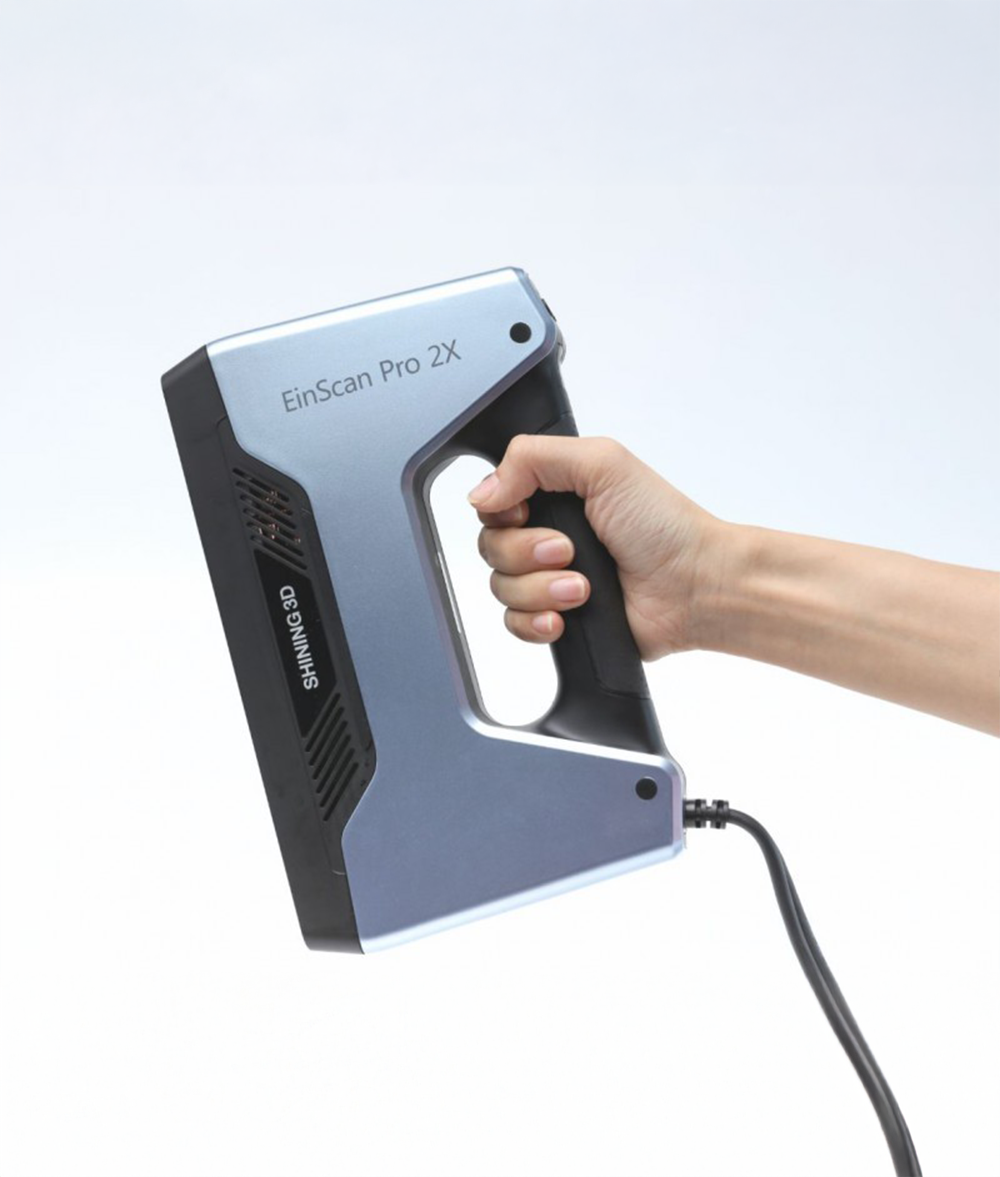

Handheld HD Scan

The Handheld HD scan mode allows you to perform 3D scans with high accuracy of 45 microns.

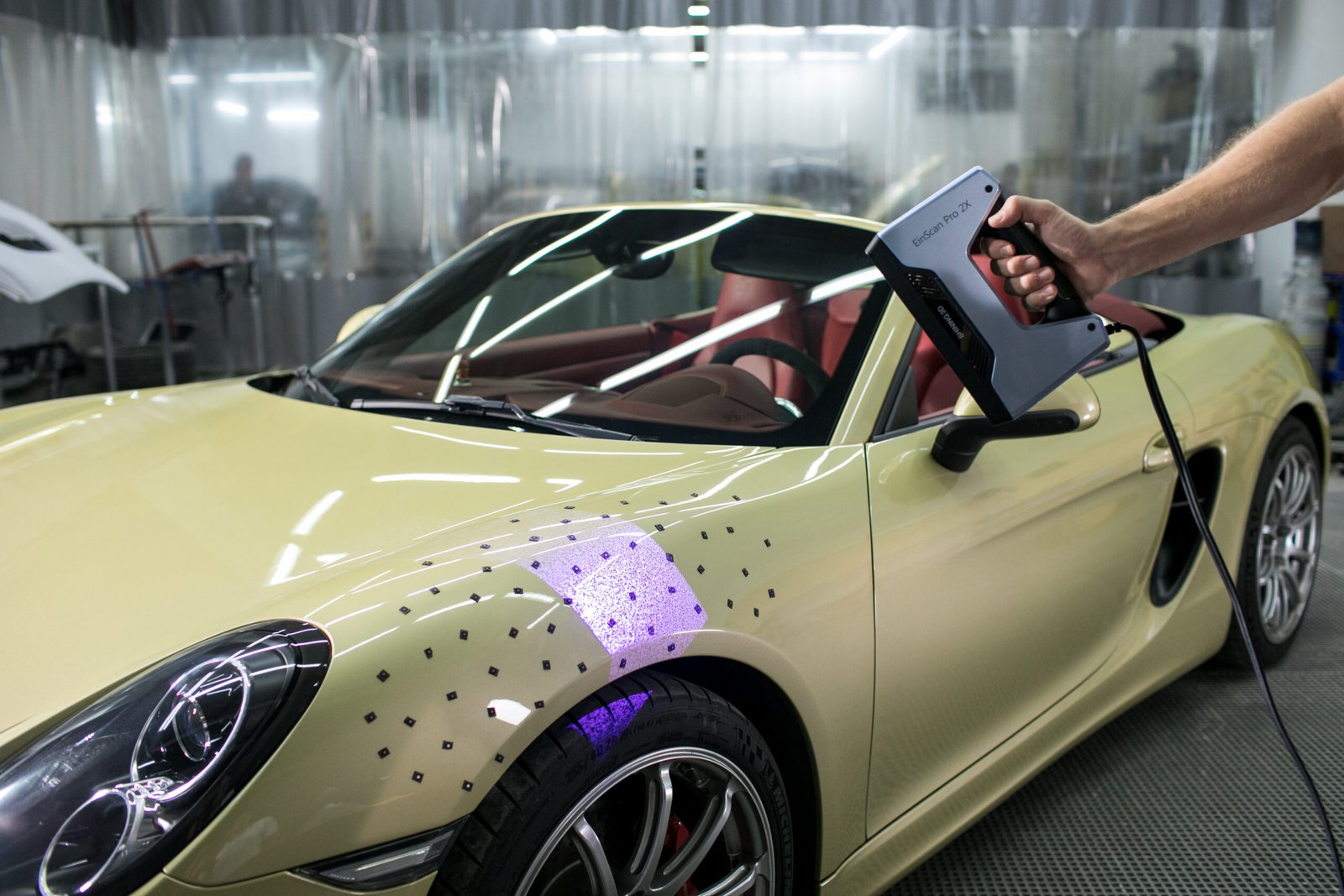

Handheld Rapid Scan

This mode is ideal for performing faster 3D scans of large objects with a maximum accuracy of 100 microns and a scan rate of 30 fps.

Fixed scan with a turntable (with Add-on Industrial Pack)

The automatic fixed scan mode with turntable allows you to automatically scan small items weighing less than 5 kg. With an accuracy of 40 microns, it is the most accurate one of 4 modes for a scan speed of less than 1 second per single capture. The 3D scan of an object is, therefore, possible in 1.5 minutes only!

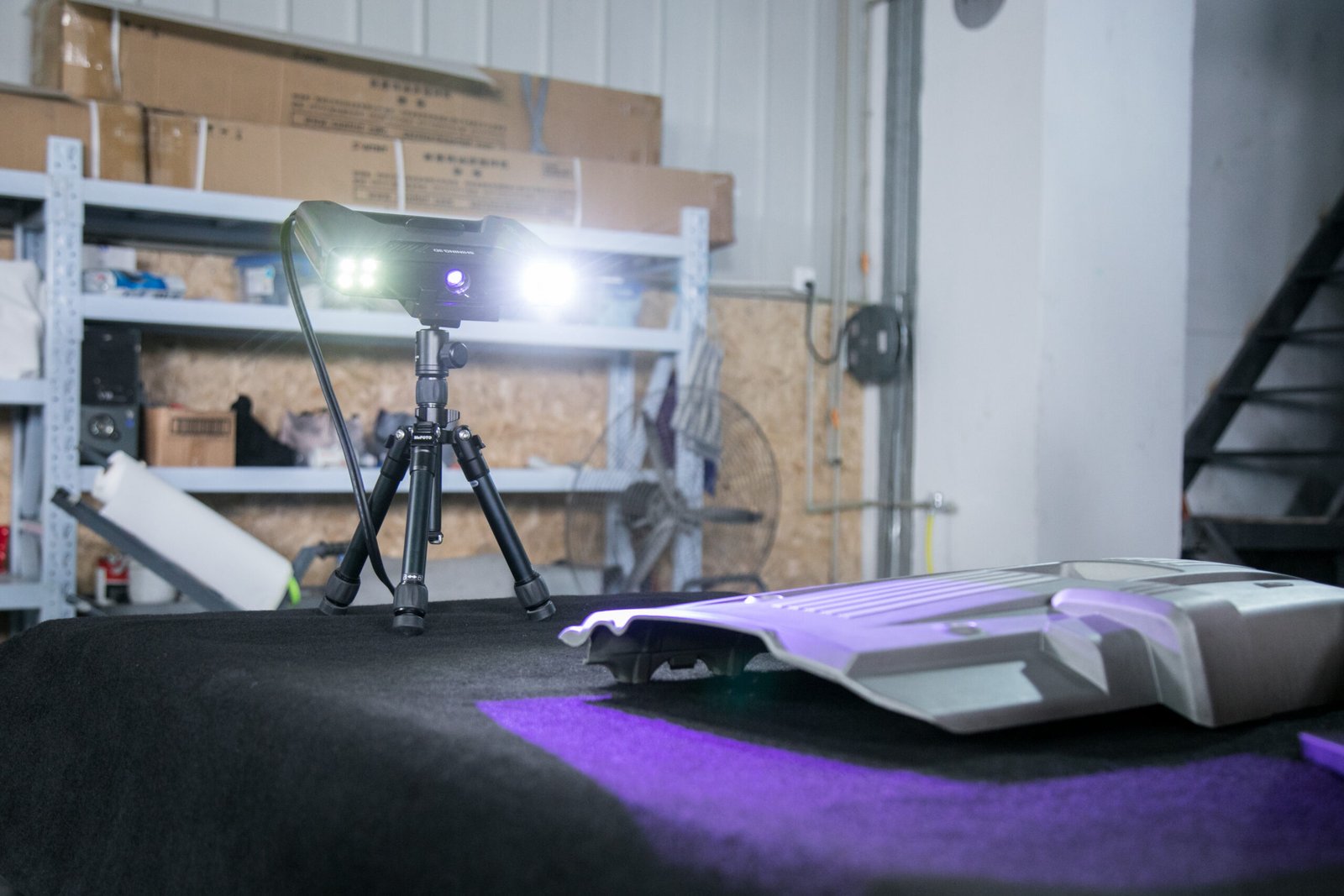

Fixed scan without a turntable (with Add-on Industrial Pack)

The free fixed scan mode without turntable shares the same accuracy and 3D scan speed as the automatic fixed mode. It is perfect for scanning medium-sized objects.

ADD-ONS (option)

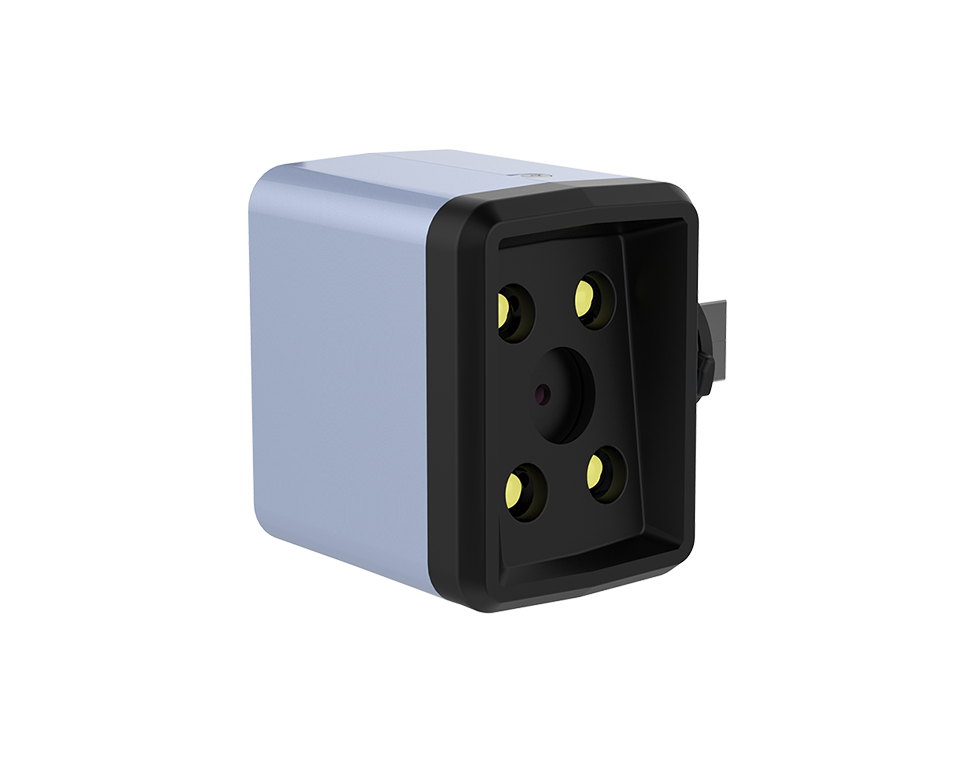

Color capture module

The EinScan Pro 2X V2 Color Pack consists of an RGB camera that can capture the textures and colors of an object. This module hangs on the scanner with great simplicity.

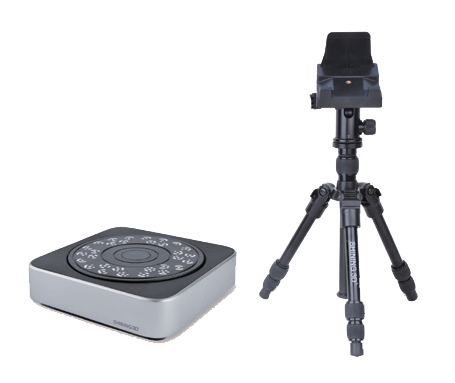

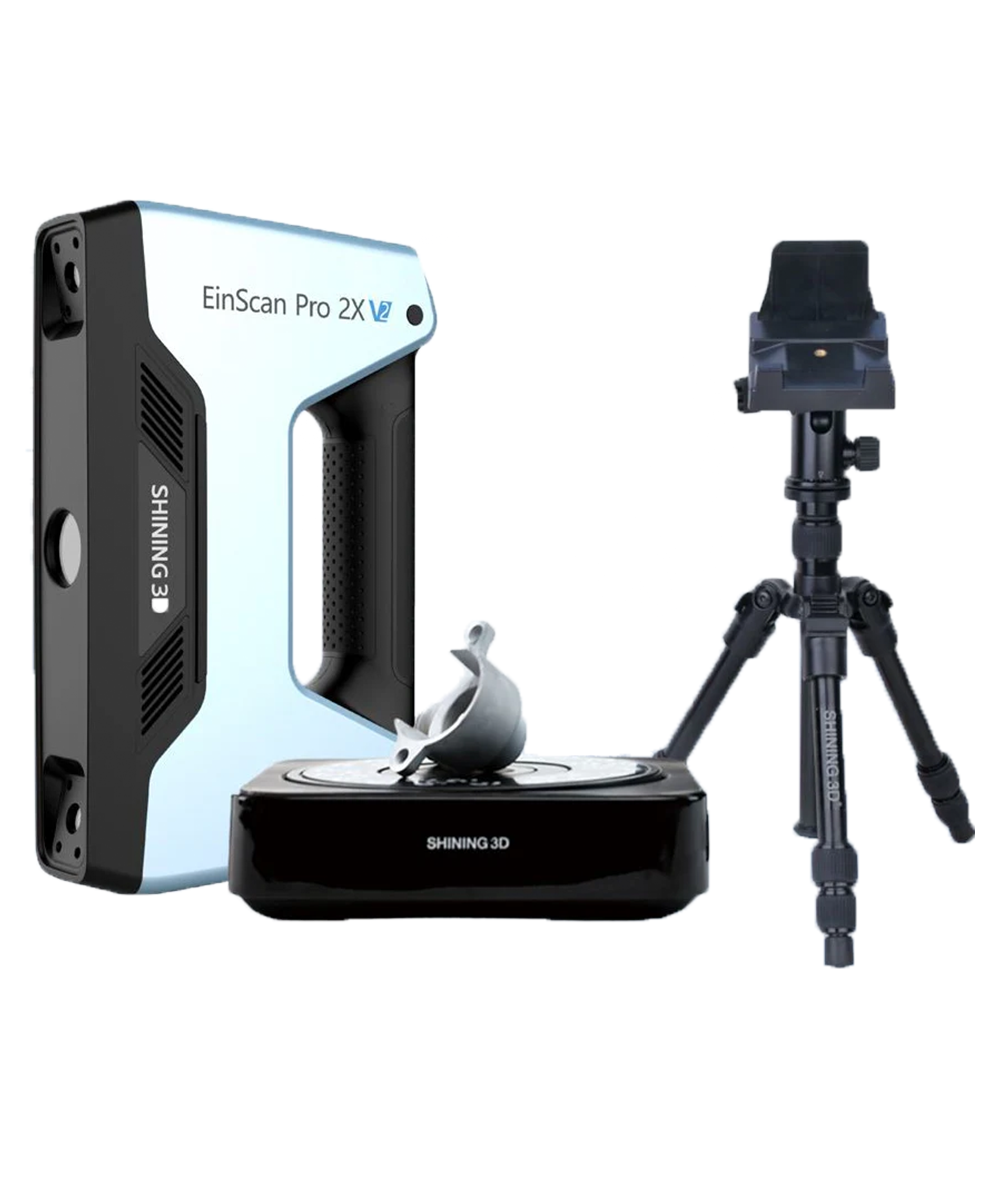

Turntable module + Tripod

This “industrial” module can scan your objects in automatic mode but also in free mode with the tripod alone.

Softwares

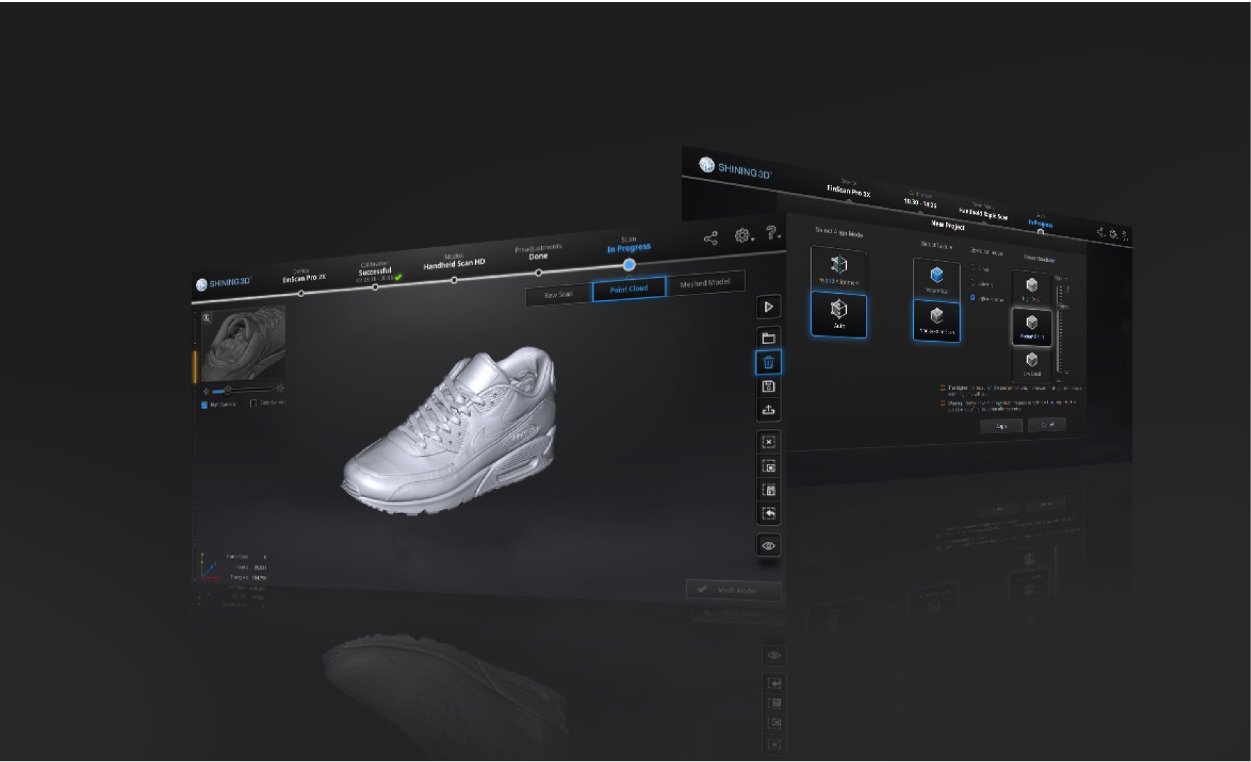

EXSCAN

The Einscan scan software develops its new look.
Its interface and design have been reviewed in order to offer more intuitive and pleasant 3D scan experience!
Visualize your screen scans in real-time and export your 3D files to formats compatible with your CAD software and 3D printers.

Discover the Einscan Pro 2X in video (Developed version: Einscan Pro 2X V2)

Scan

Handheld HD Scan

Handheld Rapid Scan

Fixed scan

with turntable

Fixed scan without turntable

Scan Accuracy

Up to 0.045 mm

Up to 0.1 mm

0.04 mm


(Single Shot Accuracy)

0.04 mm


(Single Shot Accuracy)

Volumetric Accuracy

0.3 mm/m (Markers Alignment)

0.3 mm/m (Markers Alignment)

N/A

N/A

Scanning speed

10 fps

3,000,000 points/s

30 fps

1,500,000 points/s

Single shot: < 1 s

Single shot: < 1s

Point Distance

0.2 mm - 2 mm

0.2 mm - 2 mm

0.16 mm

0.16 mm

Single Scan Range

150 x 120 mm - 250 x 200 mm

150 x 120 mm - 250 x 200 mm

150 x 120 mm - 250 x 200 mm

150 x 120 mm - 250 x 200 mm

Depth of Field

+/- 100 mm

+/- 100 mm

+/- 100 mm

+/- 100 mm

Working Distance

400 mm

400 mm

400 mm

400 mm

Light Source

LED

LED

LED

LED

Texture Scan

No

Yes (with Add-on: Color Pack)

Yes (with Add-on: Color Pack)

Yes (with Add-on: Color Pack)

Outdoor Operation

Set up the shelter or cover to avoid direct sunlight

Set up the shelter or cover to avoid direct sunlight

Set up the shelter or cover to avoid direct sunlight

Set up the shelter or cover to avoid direct sunlight

Special Objects for

Scanning

For transparent, highly reflective or some dark objects, please spray powder before scanning

For transparent, highly reflective or some dark objects, please spray powder before scanning

For transparent, highly reflective or some dark objects, please spray powder before scanning

For transparent, highly reflective or some dark objects, please spray powder before scanning

Software


Version

EXScan

EXScan

EXScan

EXScan

Output Formats

 OBJ , STL , ASC , PLY , P3, 3MF

 OBJ , STL , ASC , PLY , P3, 3MF

 OBJ , STL , ASC , PLY , P3, 3MF

 OBJ , STL , ASC , PLY , P3, 3MF

Compatibility

Win 7, Win 8, Win 10, 64 bit

Win 7, Win 8, Win 10, 64 bit

Win 7, Win 8, Win 10, 64 bit

Win 7, Win 8, Win 10, 64 bit

Configuration


Recommended configuration

Graphics card: NVIDIA GTX1080 and higher;


video memory: >4G, processor: I7-8700, memory: 64G;

Graphics card: NVIDIA GTX1080 and higher;


video memory: >4G, processor: I7-8700, memory: 64G;

Graphics card: NVIDIA GTX1080 and higher;


video memory: >4G, processor: I7-8700, memory: 64G;

Graphics card: NVIDIA GTX1080 and higher;


video memory: >4G, processor: I7-8700, memory: 64G;

Required configuration

Graphics card: Quadro card P1000 and above or NVIDIA GTX660 and higher;


processor: Intel (R) xeon E3-1230, Intel (R) I5-3470, Intel (R) I7-3770


Memory : 8G

Graphics card: Quadro card P1000 and above or NVIDIA GTX660 and higher;


processor: Intel (R) xeon E3-1230, Intel (R) I5-3470, Intel (R) I7-3770


Memory : 8G

Graphics card: Quadro card P1000 and above or NVIDIA GTX660 and higher;


processor: Intel (R) xeon E3-1230, Intel (R) I5-3470, Intel (R) I7-3770


Memory : 8G

Graphics card: Quadro card P1000 and above or NVIDIA GTX660 and higher;


processor: Intel (R) xeon E3-1230, Intel (R) I5-3470, Intel (R) I7-3770


Memory : 8G

Dimension / Weight


Dimension

37 x 36.5 x 13.5 cm

37 x 36.5 x 13.5 cm

37 x 36.5 x 13.5 cm

37 x 36.5 x 13.5 cm

Package weight

1.13 kg

1.13 kg

1.13 kg

1.13 kg

User manual
Quick guidebook

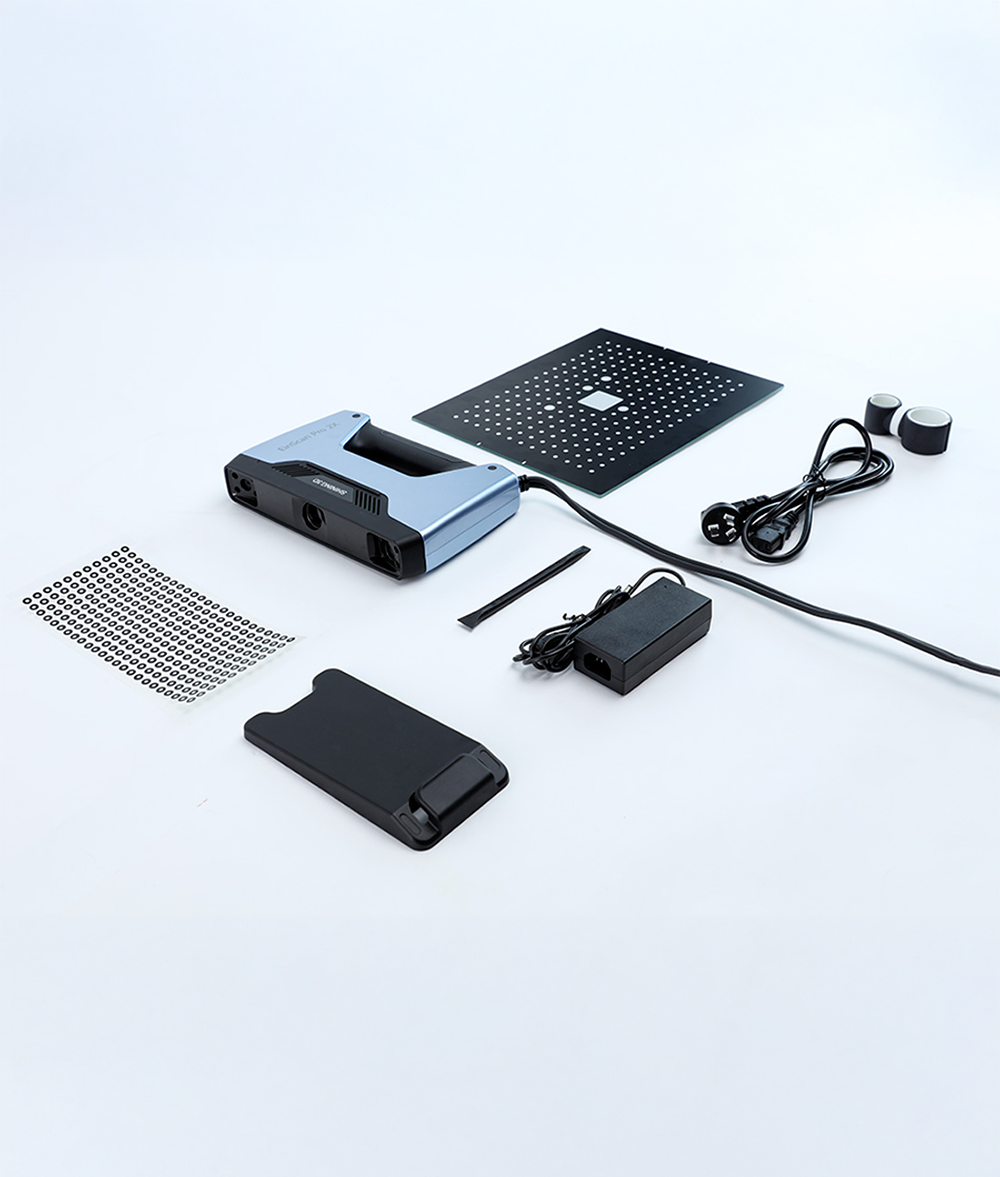

  • 1 3D scanner Einscan Pro 2X V2
  •  Software EXScan Pro
  • USB cable
  • Power adapter
  • Power cable
  • 1 Calibration board
  • 1 Calibration board support
  • Markers
  • 1 Marker remover
  • Cable clip
  • Phone Screen Mount
  • Turntable
  • Tripod
  • 1 USB drive
  • 1-year warranty
  • Machines-3D Hotline Support
  • Machines-3D premium customer service
  • Turntable connection cable
  • USB drive
  • Tripod
  • 1-Year Warranty

Description

  • Maximal accuracy

    Handheld HD Scan: 0.045mm
    Handheld Rapid Scan: 0.1 mm
    Fixed scan with turntable: 0.04 mm
    Fixed scan without turntable: 0.04 mm

  • Possible dimensions of 3D scan

    Minimum 0.2 mm to several meters (according to the modes)

  • Scan speed

    Handheld HD Scan: 10 fps (3 000 000points/s)
    Handheld Rapid Scan: 30 fps (1 500 000 points/s)
    Fixed scan with turntable: <1s per scan
    Fixed scan without turntable: <1s per scan

A multifunctional scanner with 4 scan modes

Handheld HD Scan

The Handheld HD scan mode allows you to perform 3D scans with high accuracy of 45 microns.

Handheld Rapid Scan

This mode is ideal for performing faster 3D scans of large objects with a maximum accuracy of 100 microns and a scan rate of 30 fps.

Fixed scan with a turntable
(with Add-on Industrial Pack)

The automatic fixed scan mode with turntable allows you to automatically scan small items weighing less than 5 kg. With an accuracy of 40 microns, it is the most accurate one of 4 modes for a scan speed of less than 1 second per single capture. The 3D scan of an object is, therefore, possible in 1.5 minutes only!

Fixed scan without a turntable
(with Add-on Industrial Pack)

The free fixed scan mode without turntable shares the same accuracy and 3D scan speed as the automatic fixed mode. It is perfect for scanning medium-sized objects.

ADD-ONS (option)


Color capture module

The EinScan Pro 2X V2 Color Pack consists of an RGB camera that can capture the textures and colors of an object. This module hangs on the scanner with great simplicity.

Turntable module + Tripod

This “industrial” module can scan your objects in automatic mode but also in free mode with the tripod alone.

Softwares

EXSCAN

The Einscan scan software develops its new look.
Its interface and design have been reviewed in order to offer more intuitive and pleasant 3D scan experience!
Visualize your screen scans in real-time and export your 3D files to formats compatible with your CAD software and 3D printers.

Discover the Einscan Pro 2X in video
(Developed version: Einscan Pro 2X V2)




Scan

Handheld HD Scan

Handheld Rapid Scan

Fixed scan

with turntable

Fixed scan without turntable

Scan Accuracy

Up to 0.045 mm

Up to 0.1 mm

0.04 mm

(Single Shot Accuracy)

0.04 mm

(Single Shot Accuracy)

Volumetric Accuracy

0.3 mm/m (Markers Alignment)

0.3 mm/m (Markers Alignment)

N/A

N/A

Scanning speed

10 fps

3,000,000 points/s

30 fps

1,500,000 points/s

Single shot: < 1 s

Single shot: < 1s

Point Distance

0.2 mm – 2 mm

0.2 mm – 2 mm

0.16 mm

0.16 mm

Single Scan Range

150 x 120 mm – 250 x 200 mm

150 x 120 mm – 250 x 200 mm

150 x 120 mm – 250 x 200 mm

150 x 120 mm – 250 x 200 mm

Depth of Field

+/- 100 mm

+/- 100 mm

+/- 100 mm

+/- 100 mm

Working Distance

400 mm

400 mm

400 mm

400 mm

Light Source

LED

LED

LED

LED

Texture Scan

No

Yes (with Add-on: Color Pack)

Yes (with Add-on: Color Pack)

Yes (with Add-on: Color Pack)

Outdoor Operation

Set up the shelter or cover to avoid direct sunlight

Set up the shelter or cover to avoid direct sunlight

Set up the shelter or cover to avoid direct sunlight

Set up the shelter or cover to avoid direct sunlight

Special Objects for

Scanning

For transparent, highly reflective or some dark objects, please spray powder before scanning

For transparent, highly reflective or some dark objects, please spray powder before scanning

For transparent, highly reflective or some dark objects, please spray powder before scanning

For transparent, highly reflective or some dark objects, please spray powder before scanning

Software

Version

EXScan

EXScan

EXScan

EXScan

Output Formats

 OBJ , STL , ASC , PLY , P3, 3MF

 OBJ , STL , ASC , PLY , P3, 3MF

 OBJ , STL , ASC , PLY , P3, 3MF

 OBJ , STL , ASC , PLY , P3, 3MF

Compatibility

Win 7, Win 8, Win 10, 64 bit

Win 7, Win 8, Win 10, 64 bit

Win 7, Win 8, Win 10, 64 bit

Win 7, Win 8, Win 10, 64 bit

Configuration

Recommended configuration

Graphics card: NVIDIA GTX1080 and higher;

video memory: >4G, processor: I7-8700, memory: 64G;

Graphics card: NVIDIA GTX1080 and higher;

video memory: >4G, processor: I7-8700, memory: 64G;

Graphics card: NVIDIA GTX1080 and higher;

video memory: >4G, processor: I7-8700, memory: 64G;

Graphics card: NVIDIA GTX1080 and higher;

video memory: >4G, processor: I7-8700, memory: 64G;

Required configuration

Graphics card: Quadro card P1000 and above or NVIDIA GTX660 and higher;

processor: Intel (R) xeon E3-1230, Intel (R) I5-3470, Intel (R) I7-3770

Memory : 8G

Graphics card: Quadro card P1000 and above or NVIDIA GTX660 and higher;

processor: Intel (R) xeon E3-1230, Intel (R) I5-3470, Intel (R) I7-3770

Memory : 8G

Graphics card: Quadro card P1000 and above or NVIDIA GTX660 and higher;

processor: Intel (R) xeon E3-1230, Intel (R) I5-3470, Intel (R) I7-3770

Memory : 8G

Graphics card: Quadro card P1000 and above or NVIDIA GTX660 and higher;

processor: Intel (R) xeon E3-1230, Intel (R) I5-3470, Intel (R) I7-3770

Memory : 8G

Dimension / Weight

Dimension

37 x 36.5 x 13.5 cm

37 x 36.5 x 13.5 cm

37 x 36.5 x 13.5 cm

37 x 36.5 x 13.5 cm

Package weight

1.13 kg

1.13 kg

1.13 kg

1.13 kg



User manual



Quick guidebook

  • 1 3D scanner Einscan Pro 2X V2
  •  Software EXScan Pro
  • USB cable
  • Power adapter
  • Power cable
  • 1 Calibration board
  • 1 Calibration board support
  • Markers
  • 1 Marker remover
  • Cable clip
  • Phone Screen Mount
  • Turntable
  • Tripod
  • 1 USB drive
  • 1-year warranty
  • Machines-3D Hotline Support
  • Machines-3D premium customer service
  • Turntable connection cable
  • USB drive
  • Tripod
  • 1-Year Warranty

Scan

Handheld HD Scan

Handheld Rapid Scan

Fixed scan

with turntable

Fixed scan without turntable

Scan Accuracy

Up to 0.045 mm

Up to 0.1 mm

0.04 mm

(Single Shot Accuracy)

0.04 mm

(Single Shot Accuracy)

Volumetric Accuracy

0.3 mm/m (Markers Alignment)

0.3 mm/m (Markers Alignment)

N/A

N/A

Scanning speed

10 fps

3,000,000 points/s

30 fps

1,500,000 points/s

Single shot: < 1 s

Single shot: < 1s

Point Distance

0.2 mm – 2 mm

0.2 mm – 2 mm

0.16 mm

0.16 mm

Single Scan Range

150 x 120 mm – 250 x 200 mm

150 x 120 mm – 250 x 200 mm

150 x 120 mm – 250 x 200 mm

150 x 120 mm – 250 x 200 mm

Depth of Field

+/- 100 mm

+/- 100 mm

+/- 100 mm

+/- 100 mm

Working Distance

400 mm

400 mm

400 mm

400 mm

Light Source

LED

LED

LED

LED

Texture Scan

No

Yes (with Add-on: Color Pack)

Yes (with Add-on: Color Pack)

Yes (with Add-on: Color Pack)

Outdoor Operation

Set up the shelter or cover to avoid direct sunlight

Set up the shelter or cover to avoid direct sunlight

Set up the shelter or cover to avoid direct sunlight

Set up the shelter or cover to avoid direct sunlight

Special Objects for

Scanning

For transparent, highly reflective or some dark objects, please spray powder before scanning

For transparent, highly reflective or some dark objects, please spray powder before scanning

For transparent, highly reflective or some dark objects, please spray powder before scanning

For transparent, highly reflective or some dark objects, please spray powder before scanning

Software

Version

EXScan

EXScan

EXScan

EXScan

Output Formats

 OBJ , STL , ASC , PLY , P3, 3MF

 OBJ , STL , ASC , PLY , P3, 3MF

 OBJ , STL , ASC , PLY , P3, 3MF

 OBJ , STL , ASC , PLY , P3, 3MF

Compatibility

Win 7, Win 8, Win 10, 64 bit

Win 7, Win 8, Win 10, 64 bit

Win 7, Win 8, Win 10, 64 bit

Win 7, Win 8, Win 10, 64 bit

Configuration

Recommended configuration

Graphics card: NVIDIA GTX1080 and higher;

video memory: >4G, processor: I7-8700, memory: 64G;

Graphics card: NVIDIA GTX1080 and higher;

video memory: >4G, processor: I7-8700, memory: 64G;

Graphics card: NVIDIA GTX1080 and higher;

video memory: >4G, processor: I7-8700, memory: 64G;

Graphics card: NVIDIA GTX1080 and higher;

video memory: >4G, processor: I7-8700, memory: 64G;

Required configuration

Graphics card: Quadro card P1000 and above or NVIDIA GTX660 and higher;

processor: Intel (R) xeon E3-1230, Intel (R) I5-3470, Intel (R) I7-3770

Memory : 8G

Graphics card: Quadro card P1000 and above or NVIDIA GTX660 and higher;

processor: Intel (R) xeon E3-1230, Intel (R) I5-3470, Intel (R) I7-3770

Memory : 8G

Graphics card: Quadro card P1000 and above or NVIDIA GTX660 and higher;

processor: Intel (R) xeon E3-1230, Intel (R) I5-3470, Intel (R) I7-3770

Memory : 8G

Graphics card: Quadro card P1000 and above or NVIDIA GTX660 and higher;

processor: Intel (R) xeon E3-1230, Intel (R) I5-3470, Intel (R) I7-3770

Memory : 8G

Dimension / Weight

Dimension

37 x 36.5 x 13.5 cm

37 x 36.5 x 13.5 cm

37 x 36.5 x 13.5 cm

37 x 36.5 x 13.5 cm

Package weight

1.13 kg

1.13 kg

1.13 kg

1.13 kg



User manual



Quick guidebook

  • 1 3D scanner Einscan Pro 2X V2
  •  Software EXScan Pro
  • USB cable
  • Power adapter
  • Power cable
  • 1 Calibration board
  • 1 Calibration board support
  • Markers
  • 1 Marker remover
  • Cable clip
  • Phone Screen Mount
  • Turntable
  • Tripod
  • 1 USB drive
  • 1-year warranty
  • Machines-3D Hotline Support
  • Machines-3D premium customer service
  • Turntable connection cable
  • USB drive
  • Tripod
  • 1-Year Warranty

Additional information

Weight 70 kg
Dimensions 635,5 × 590,5 × 1060 cm

Reviews

There are no reviews yet.

Be the first to review “Einscan Pro 2X V2”

Your email address will not be published. Required fields are marked *

Founded on European savoir-faire and a passion for excellence, Machines-3D Dubai brings cutting-edge 3D printing solutions to the Middle East. With our showroom in Sharjah and dedicated webshop, we offer industries, healthcare professionals and educational institutions in the UAE direct access to the latest advances in additive manufacturing technology. Combining European expertise and local craftsmanship, Machines-3D Dubai is at the forefront of 3D printing technology in the region, guaranteeing innovation, reliability and quality service every step of the way.

Facebook Youtube Instagram Linkedin

Subscribe to
our newsletter

Contact us

Visit our showroom at :

Retail 11 Wing C

Sharjah Research Technology
and Innovation Park

University City, Sharjah, UAE

Information

Menu

© 2025 All Rights Reserved.
