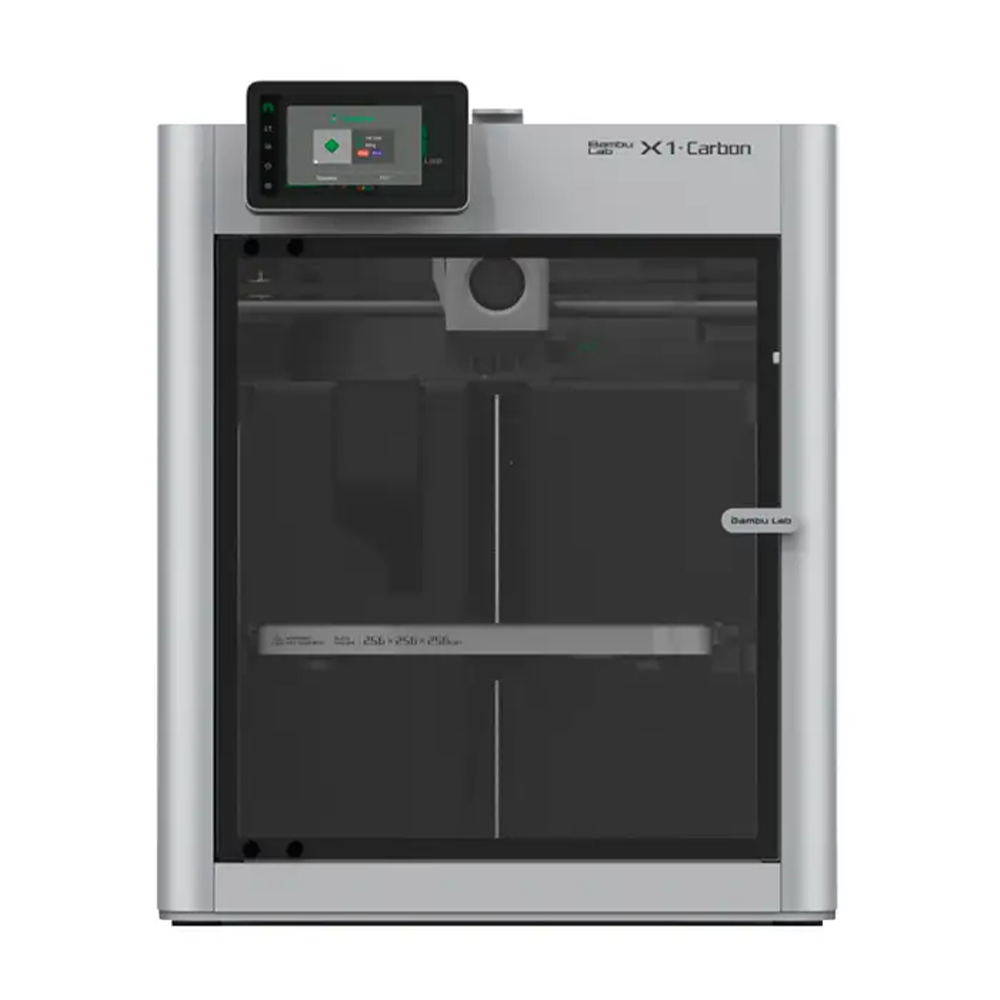

Bambu Lab X-1 Carbon Combo 3D Printer

Description



•


  Accuracy

  50 microns (0,05 mm / layer)

•


  Print Volume

  256 x 256 x 256 mm

•


  Compatible Materials

  PLA, ABS, TPU, PETG, TPE, PVA, Nylon, Carbon fiber, Glass fiber, ASA, PP, etc

Speed up to 500 mm/s

AI-Powered Evolution

Printing up to
16 Colours

Multi-Material Compatible

Advanced materials empower advanced projects

• All Metal Hotend
  300℃

• Hardened steel nozzle
  50 HRC

• Maximum Buildplate Temperature
  120℃

• Maximum Chamber Temperature
  60℃

• Auxiliary Part Cooling Fan
  12W

Bambu Lab X1 Carbon is equipped with a hardened nozzle, extra cooling, and carburized drive gear. These features enable it to unlock a wider selection of materials, including PA, PC, PET, and TPU, and specialize in carbon fiber and glass fiber reinforced polymers.

AI inspected first layer

The advanced Lidar sensor scans and verifies the first layer of your prints.

Spaghetti Detection

The printer’s AI assistant keeps an eye out for spaghetti monsters, so you can sleep easy in the knowledge that your printer is safe from this scourge.

Micro lidar assisted bed leveling

This dual automated bed leveling system ensures perfect calibration before printing. The Micro Lidar captures detailed data about the bed’s topography, allowing the printer to adjust in real-time for an even and perfectly calibrated first layer. This dual-leveling process significantly reduces print failures, ensuring superior print quality with minimal effort.

Colors & Beyond

The Bambu Lab X1-Carbon’s Automatic Material System (AMS) is designed to make multicolor printing easy and efficient so you can play with colors and experience smooth transitions to let you focus on creating without worrying about color breaks or print quality. It handles up to four different filaments at a time, enabling complex multicolor prints to be created without the need for manual filament changes. AMS takes multicolor printing to the next level.

What to expect from the X1-Carbon 3D printer

• 20 m/s² acceleration

• Active vibration compensation for better print quality

• Auto-pause when printing failure is detected

• Print resumes after power outage

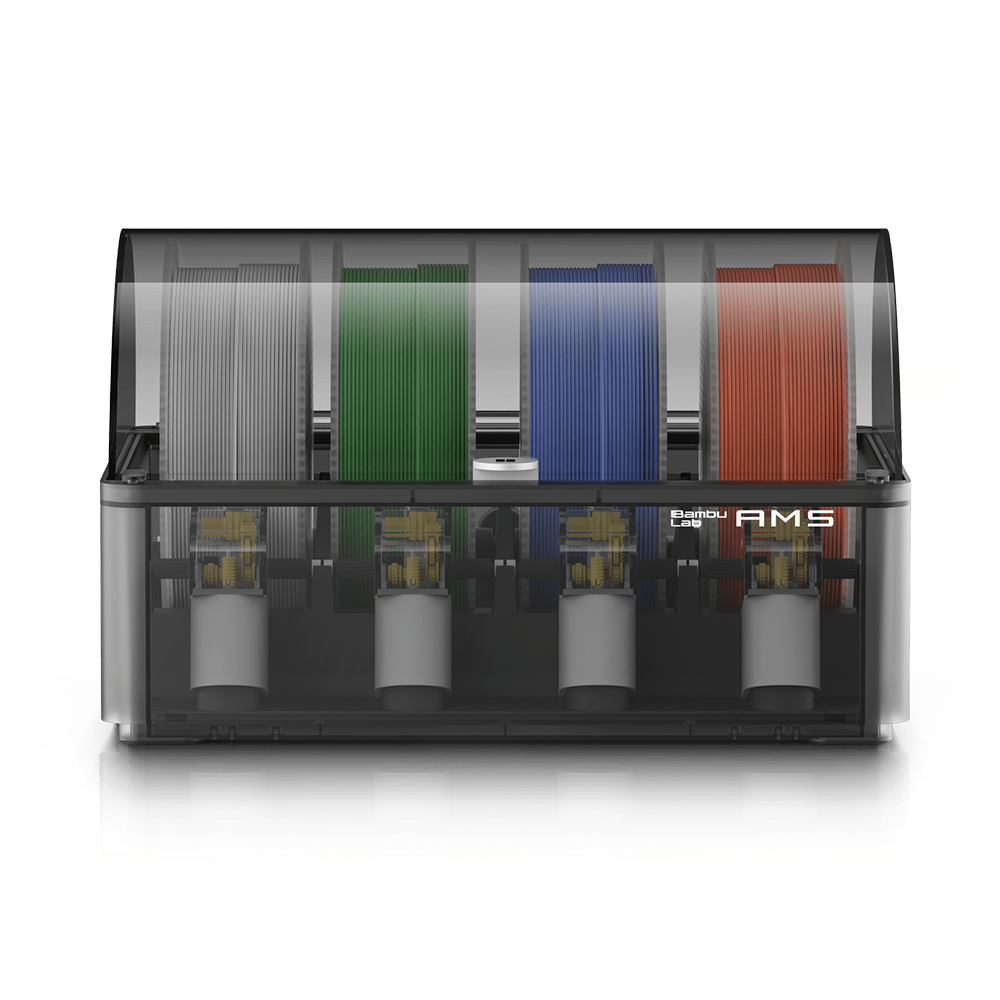

Automatic Material Management System (AMS)

Print freely in multiple colors and materials thanks to the Bambu Lab X1-Carbon’s Automatic Material Management (AMS) system. AMS enables the printer to automatically load and switch between filament types during a print job. The system’s intelligent sensors monitor the supply of filaments and ensure that they are always available.

Previous slide
Next slide

Some parts printed with the X1-Carbon 3D printer

Discover Bambu Lab X1-Carbon 3D Printer in video

Specifications


Documentation


Content of order

Properties	Data
Technology	FDM (Fused Deposition Modeling)
Print volume	256 x 256 x 256 mm
Printing Speed	Up to 500 mm/s
Filament diameter	1.75 mm
Nozzle diameters	0.2 mm / 0.4 mm / 0.6 mm / 0.8 mm
Extruder	Single, in metal
Build plate	Flexible steel plate + PEI
Filtration	G3 Pre-Filter H12 HEPA Filter Activated carbon filter VOC filtration
Calibration	Automatic
Camera	Integrated inside the machine
Filaments	PLA, PETG, TPU, PVA, BVOH, ABS, PC, PA, PET, Carbon/Glass Fiber Reinforced PLA, PETG, PA, PET, PC, ABS, ASA, PPA-CF/GF, PPS, PPS-CF/GF
Maximal Nozzle T°	320 °C
Maximal Chamber T°	60 °C
Maximal Buildplate T°	110 °C
Connectivity	Wi-Fi, Ethernet / Live Camera
Software	Bambu Studio (compatible with Superslicer, Prusaslicer, Cura, etc)
File Types	.stl, .obj, .oltp, .3mf
Operating system	Windows / Mac OS
Voltage	100-240VAC, 50/60 Hz
Max power	Max. 1400W
Dimensions of machine	389 × 389 × 457mm
Weight of machine	16 kg



Technical Data Sheet



Quick Start Guide

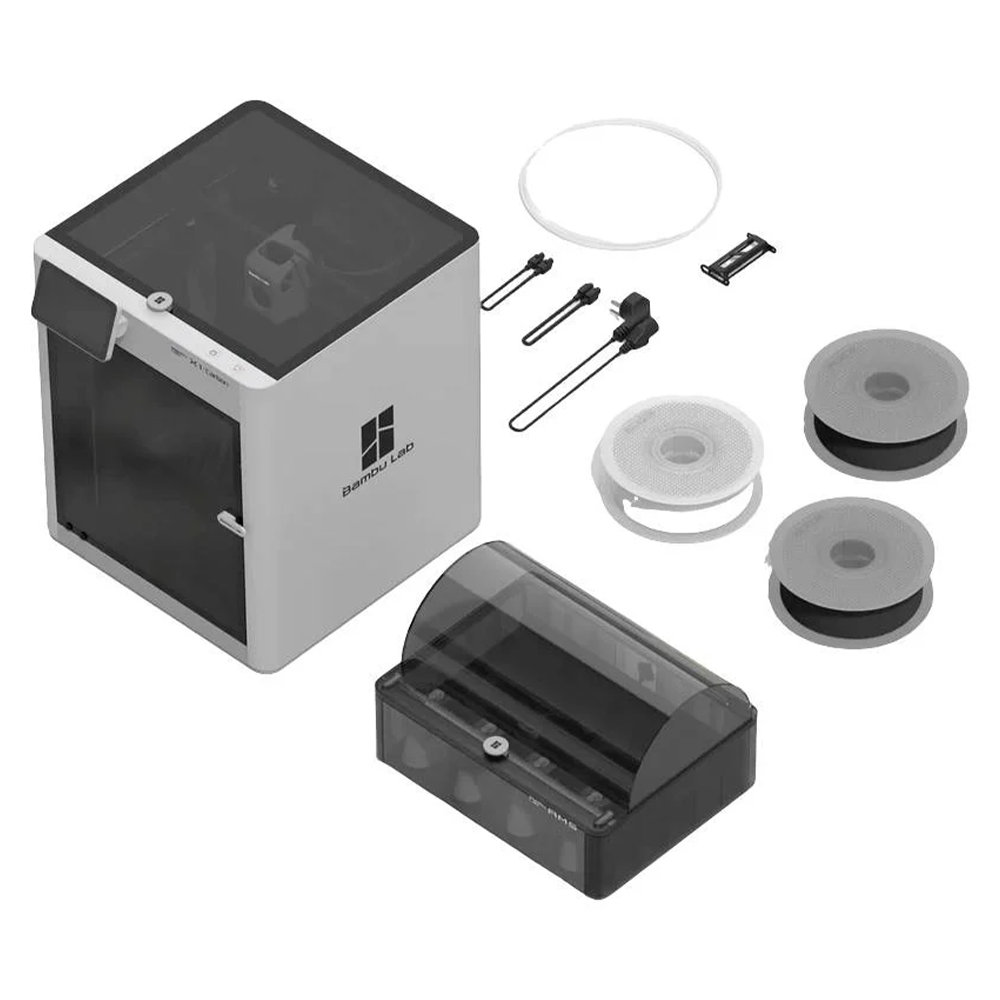

• 1 BAMBU LAB X1-Carbon 3D Printer
• Automatic Material System (AMS)
• 3 filaments of 250g (PLA, Support PLA, PLA CF)
• 1 Hotend 0.4mm
• Flexible reversible plate construction
• Spool holder
• 2 liner sheets
• 2 filament cutters
• 2 nozzle wiping pads
• AMS cable
• Allen wrench
• Unclogging needle
• Scraper blade
• Glue stick
• Machines-3D premium after-sales service
• 1-year warranty
